Opto Solino for Anomaly Detection and 3D Imaging

The Opto IM-Solino 10x12 is a complete computational imaging vision sensor that uses Opto's proprietary solino technology to display object anomalies as an image for further digital or statistical processing. Solino digitizes the visual appearance of objects and enables 100% reproducible imaging of the smallest defects on scattering surfaces.

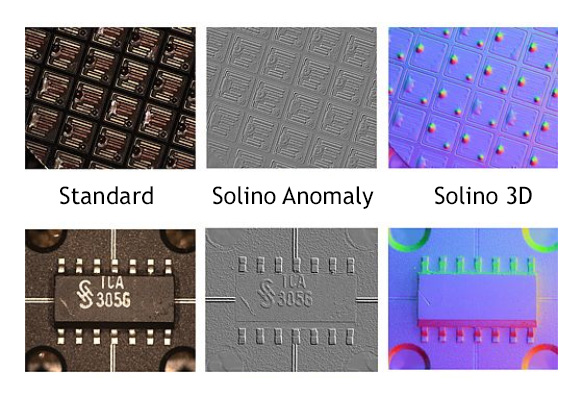

View more Images of a circuit captured with Solino here.

Solino captures all surface features and anomalies and provides roughness, reflectivity, and tilt detection. Solino eliminates reflections on metallic surfaces and provides detection of impurities on the surface of PCBs.

• Field of View: 10mm x 12mm
• Working Distance: 1mm
• Camera: 5mp Matrixsensor USB3.1
• Illumination: 64LED dome including controller

• Software: solinoViewer for photometric stereo image acquisition and preprocessing

• Dimensions: 210mm x 300mm x 210mm

• Applications: preventative maintenance, quality control and assurance, automation of manufacturing processes, code recognition on tires and O-rings, easy inspection of bubbles, stains, fingerprints, dents, cracks, etc.
• Certifications: CE / RoHS / WEEE


View the Solino Brochure.
