Why Choose a 4K Digital Microscope for Optical Inspection Tasks?

Digital microscopes capture images digitally and can integrate high-resolution sensors, software for measurement and analysis, and can employ modular designs for industrial or scientific applications. Traditional optical microscopes rely on optical viewing through eyepieces, which can provide greater image quality and a greater range of application of specialized contrast methods than digital systems, but typically require more manual processing than digital systems. For optical inspection tasks, digital microscopes are a better choice due to the ability to automate routine tasks and the create automated workflows with digital systems.

What is a 4K Digital Microscope?

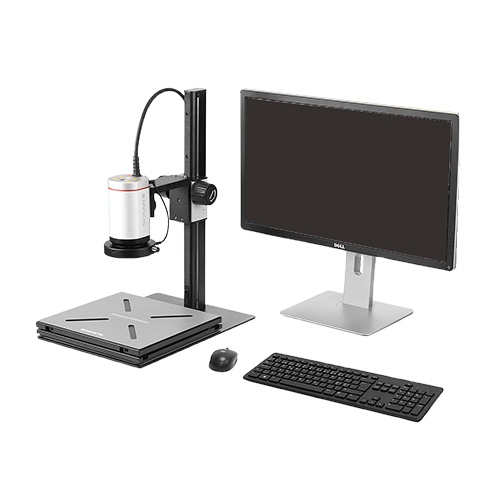

A modern 4K digital microscope integrates an image sensor, motorized zoom optics, electronics, and software to capture, process, and display images. Some key components of a 4K system are as follows:

• Motorized 1:30 to 1:50 zoom lens with autofocus
• 4K/30fps or 4K/60fps image sensor
• Electronics for signal processing, control and I/O
• On-board and remote camera with lens controls
• Connectivity via HDMI or USB
• Software

Explaining 4K Video Technology

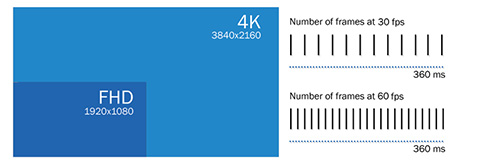

A digital microscope with 4K/ 60 fps (frames per second) offers 3840 x 2160 pixel resolution provides 4 times the detail of the standard 1080 pixel of full high defintion (FHD) and twice the detail of a 2060 pixel 4k/ 30 fps system. The diagram below compares image formats and frame rate of 4K and FHD systems.

At 60 frames per second, smooth, real-time video can be produced with without any blur and almost no lag. High frame rate is important for imaging moving objects, such as when performing soldering, or when viewing microstructures and fine mechanics of a system, or for viewing living organisms.

For 4K, 60 fps processing, significant data processing and throughput as well as high speed digital connections such as HDMI 2.0 are required.

Features of a Professional Level Digital Inspection Microscope

A professional-grade digital microscope for inspection applications has high-resolution image sensors, advanced features such as motorized zoom, and robust construction. Key features of an advanced digital inspection microscope are described below.

• Optical performance: Lenses should be able to maintain sharpness and color accuracy within the entire zoom range and field of view.
  • Resolution: A high quality zoom lens should be able to resolve a minimum of 10 line patterns (lp)/mm for a 100mm field of view and 100 lp/mm across a 10mm field of view.
  • Distortion control: A lens should prevent color fringing and vignetting of the image and should provide uniform sharpness from center of the image to its edge.
  • High numerical aperture (NA): The numerical aperture of a lens determines its light gathering ability, resolution, and depth of field. The NA should be high enough to allow the capture of bright images within the allotted 10 millisecond of exposure time.
• Mechanical precision and stability: The zoom and focus mechanisms of the digital microscope system must be stable to ensure accuracy and repeatability when capturing images.
• Durable, quality materials used in 4K Digital Microscope construction: Industrial-grade materials such as aluminum are dust and moisture resistant, so they should be used in microscope components. Heat from the image sensor and 4k video processing system can damage system components, so a design that allows for effective system cooling is critical.
• Electromagnetic Compatibility: High speed digital signals like those used in 4K, 60fps microscopes are susceptible to electromagnetic interference from other surrounding electronic equipment. A design that shields the components of the digital microscope from other laboratory instruments is critical to prevent sensor damage and the corruption of HDMI and USB ports.
• Digital interface: A 4K, 60 fps digital microscope requires 12 gigabytes per second of data processing. Such processing capacity is available with HDMI, USB-C, and gigabit Ethernet connections. The proper hardware configuration to process the large amount of data must be used.
• Illumination: Flicker free, adjustable, homogeneous LED lighting is critical to produce optimal images for inspection.
• Software: Powerful software transforms a simple imaging tool into an effective system for image analysis and documentation and allows for process automation. Some key features required for advanced image analysis include the following:
  • Controlling camera and lens parameters.
  • Capturing images and videos, including time-lapse video.
  • Post-imaging processing using filters or overlays to enhance or transform images.
  • Performing measurements, focus stacking, and automatic counting.
  • Generating reports.
  • Integrating Artificial intelligence (AI) tools to use large language models (LLMs) for data analysis or to create system models without LLM creation.
