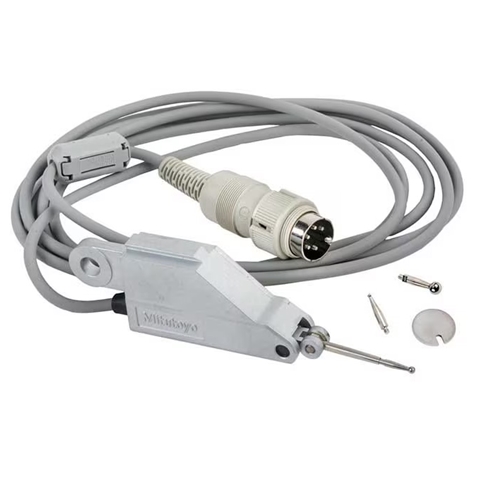

The lever head probe plugs into a Mu checker indicator and is used to measure even soft workpieces, such as the warp of a LCD panel, due to the low measuring force used by the probe. NOTE: This is only the probe. The indicator is available for purchase separately.
A comparison of the available Mu checker probes can be found here.
The probe has the following specifications:
- Measuring range: ± 0.5mm
- Stylus stroke: ± 0.6mm
- Measuring force: ~0.2N. Measuring direction may be changed with the forward/ reverse lever on the probe.
- Bearing Unit Structure: Pivot bearing type. NOTE: If the stylus makes an angle with a workpiece surface, a calibration should be performed for accurate measurement or use the correction factor table below.
- Linearity: ±0.3%
- Size: ~14mm W x 100mm D x 28mm H (probe only, not including cable). Cable is 2m long and has a MAS-5100 (DIN5P) attachment at one end that connects to the Mu checker indicator.
- Includes: Stylus with Ø2mm diameter ball-ended tip.
- Additional compatible styli and Mu checker indicators may be purchased here.
NOTE: This item is not returnable.
Mitutoyo Part # 519-521
Use the following equation to find the correct value when using the mu checker probe:
Display value x Correction factor = Corrected value
Correction factor table for Stylus Angle:
| Angle
θ
|
Correction Factor |
| 0º |
1.00 |
| 10º |
0.98 |
| 20º |
0.94 |
| 30º |
0.87 |
| 40º |
0.77 |
| 50º |
0.64 |
| 60º |
0.50 |
