What is SurfaceMeasure?

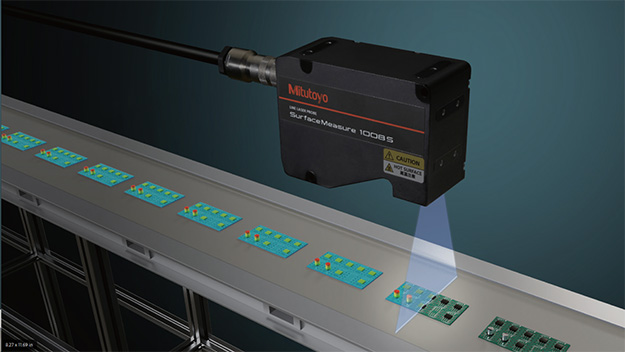

The SurfaceMeasure1008S is a non-contact line-laser sensor that is used for inspection and measurement of 2D and 3D images. Using the emulator makes it possible to consider measurement conditions or make an analysis with obtained data even when offline.
- High Accuracy Sensor - the sensor is guaranteed for an accuracy of 20µm and Z repeatability of 0.5µm
- Environment Resistant - IP67 Protection provides stable measurements
- Supports Automated Measurement - Obtain profiles and 3D shapes of measurements workpieces at high speed (max frame rate 10 kHz) and make automatic judgement inside the sensor. Parts matching function allows the measurement tool to be applied throughout, regardless of the orientations of parts being measured. Measurements can be taken without performing alignment.
- Simple Operation - Software supports intuitive operation and is built into the sensor (no software installation required) so you can use it immediately after mounting.
SurfaceMeasure Applications
Automobile Industry: Panel Gap Inspection

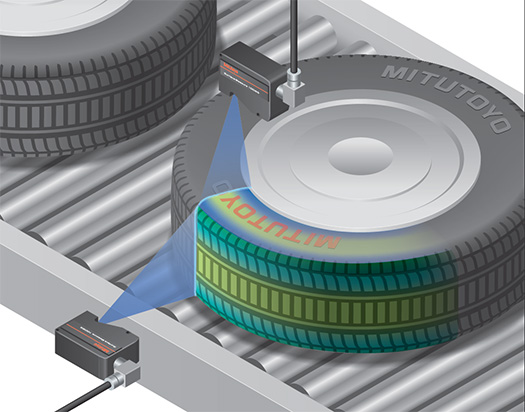

Rubber and Tire Industries: Tire Shape Inspection

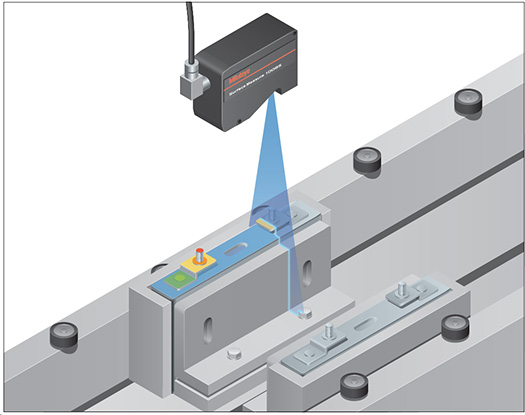

Electric Vehicle Battery Industry: Cell Assembly Inspection

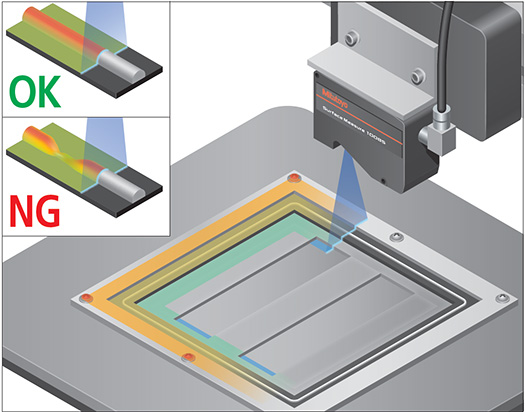

Electrical and Electronic Industries: Adhesive Inspection

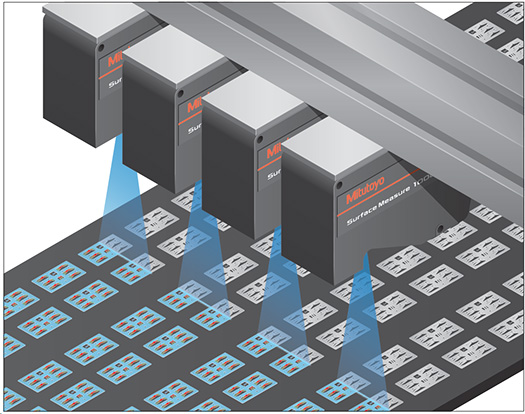

Electrical and Electronic Industries: Connector Pin Inspection

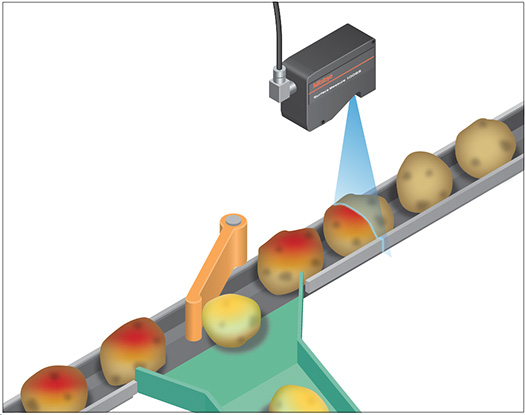

Food Industry: Standard Inspection of Food

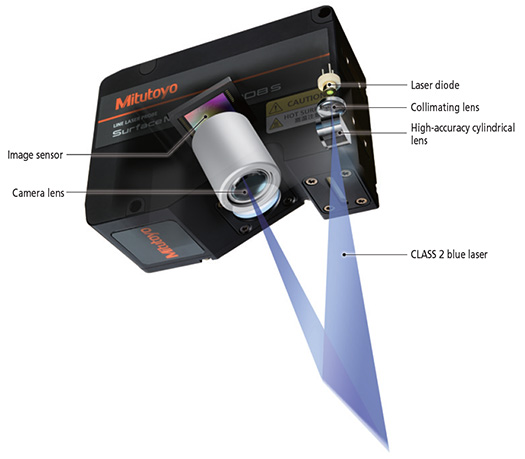

Look Inside SurfaceMeasure
The SurfaceMeasure1008S is a line-laser sensor that combines optical technology and sensor technology. Take a look inside the SurfaceMeasure.
Software Measuring Tools
No need to install software because the software is web browser based. The software contains a number of built-in measurement tools.

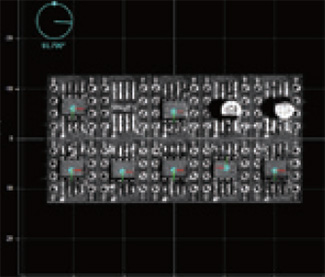

Pattern Matching

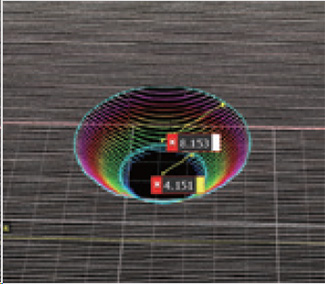

Countersink Hole

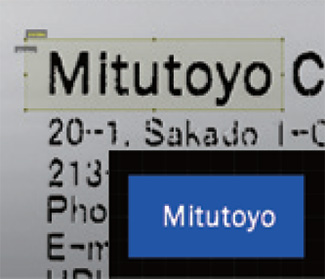

Optical Character Recognition (OCR)

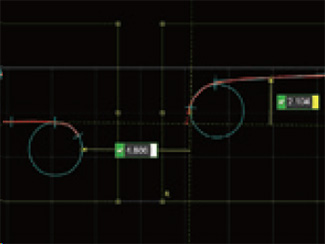

Gap & Flush

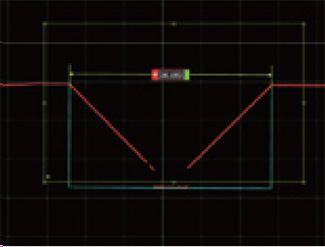

Groove

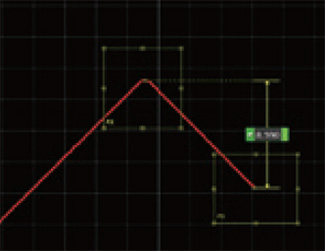

Size
