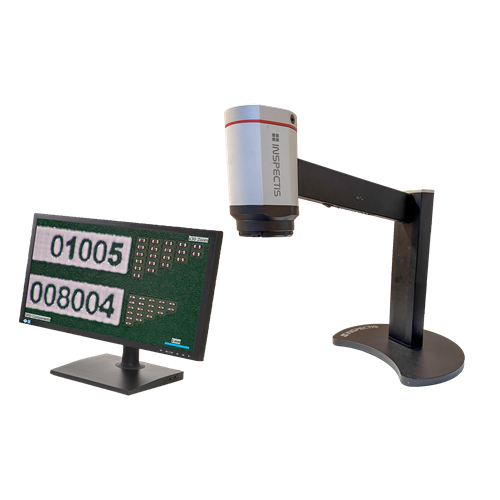

Inspectis U30s 4K Direct to Monitor All in One System

The Inspectis U30s 4K direct to monitor all in one system features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom in an industrial grade aluminum housing for a reliable and cost effective digital video inspection system. This plug and play system has an on-board camera and lens controls paired with a 27" 4K monitor and USB image and video capture device making it ideal for optical inspection work.

• Video Output: 4K Ultra HD 2160p/30 fps switchable to FHD 1080p/60pfs
• Imager: 8.5 MP, 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size: 1.62µm x 1.62µm

• Lens: megapixle motorized 30:1 zoom range with auto focus, iris control and pre-calibrated optics with automatic zoom tracking.

• Camera and lens control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
• Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
• Capture Device: USB image and video capture device for recording and storing images and videos.
• Illumination: Three illumination options
  • Inspectis White LED Ring Light: 8 high power LEDs with 5800 K color temperature and detachable diffuser. Illumination controls for soft, smooth light adjustment. The ring light is powered directly through the AUX output of the Inspectis digital microscope.
  • LED Dual Pipe: Each pipe light contains 3w LED light with a bulb life expectancy of 20,000 hours. Variable intensity. Pipe length of 24". 110v - 240v power supply.
  • High Intensity LED Light Box with Fiber Ring: 20w LED light with variable intensity control. Flexible ring light guide is 40" (1,000mm) in length with inside diameter of ring measuring 60.5mm. 100v-240v switchable power supply.

• Stand: Rigid industry standard all aluminum integrated stand.
• Monitor: 27" 4K monitor with 3840 x 2160 resolution.
• Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.

• Manufactured in Sweden.

Zoom Factor	Magnification on 27" LCD	Optical Magnification
1	1.8	0.6
5	9.8	3.2
10	18.9	6.2
15	29.0	9.5
20	38.8	12.7
30	64.1	21
30 +1	79.4	26
30 +2	91.6	30
30 +3	106.9	35
30 +5	140.5	46
30 +10	201.5	66
10 +28	131.3	43
30 +28	436.7	143
10 +56	226	74
30 +56	754.2	247

NOTE: This item is not returnable.
