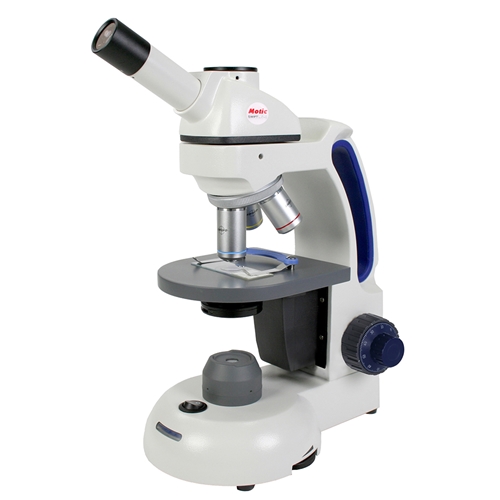

Swift M3603 Series Cordless Compound Microscopes

Swift M3600 series cordless rechargeable biological microscopes are perfect for high school with a student-proof microscope design, lead-free objectives, energy-efficient LED illumination, one-touch spring loaded stage clips and a built-in handle to encourage proper handling.

• Body: Monocular head is inclined 45 degrees and rotatable 360 degrees for ergonomic viewing. Built- in camera port and includes c-mount lens. Ergonomic carrying handle promotes proper handling. Quality manufacturing and all-metal internal parts, along with lead-free glass optics provide quality viewing. Swift microscope is finished in acid and reagent resistant epoxy-ester resin for long-lasting durability.
• Objective Lenses: DIN standard achromat objective lenses include lead-free 4x, 10x, 40x that are parfocaled and parcentered and locked on. The 40x objective is spring-loaded and sealed to protect optics from contact damage. Objectives are secured in a rotatable inward-facing reversed nosepiece for easy magnification change.
• Eyepieces: Widefield 10x eyepiece with an 18mm field of view. Eyepiece includes a Pointmaster graduated eyepiece scale for measuring specimens. Eyepiece accepts a 19mm diameter reticle.
• Total Magnification: 40x, 100x, 400x.
• Specimen Stage: Two options available. M3603C model has spring-loaded stage clips and M3604C-3 has a built-in mechanical stage with smooth-moving, low-drive, coaxial controls for ease of use.
• Condenser: Swift M3603C has built-in NA 0.65 condenser with iris. Swift M3604C (version with mechanical stage included) has Abbe NA 1.25 spiral condenser, rack and pinion, with iris diaphragm to increase contrast for a sharp, crisp image.
• Focusing: Coarse and fine focusing allows fine-tuned focusing. Slip clutch protects against over-focusing.
• Illumination: LED illumination is efficient, cool and a bright white light. Includes dimmer switch to control light. Easy to replace LED bulb lasts up to 50,000 hours. Includes recharger and rechargeable batteries. Run the microscope off batteries or off the recharger.
• Size and Weight: 16" high, 15 lbs.
• Warranty: Swift Optical Limited Lifetime Warranty covers defective parts and workmanship for the life of the instrument. Electrical components are covered for three years.
