Opto IM-Compact M Imaging Module

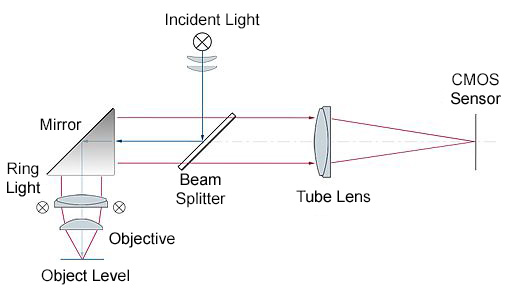

The IM-compact M from Opto is a fully self-contained microscopic imaging module measuring only 40mm x 80mm x 175mm. The robust aluminum housing includes an apochromatically corrected objective, a sensitive CMOS sensor, optional coaxial and ring light illuminator and requires just a single USB connector for both power and data transmission.

• Field of View: 28.6 mm x 24 mm to 1.9 mm x 1.4 mm depending on selected optics.
• Resolution: 500 LP/mm to 20 LP/mm depending on selected optics.
• Working Distance: 202 mm to 37 mm depending on selected optics.

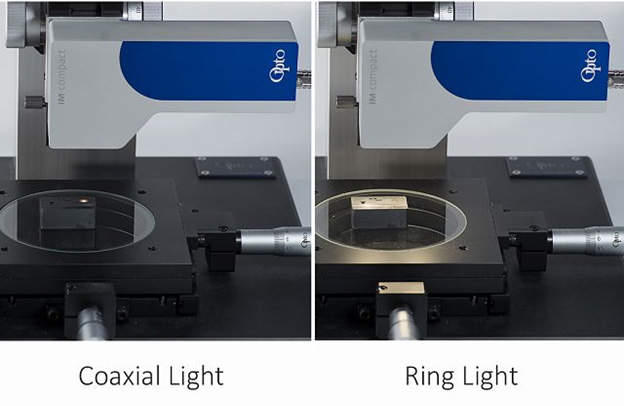

• Illumination: Optional integrated LED illuminators for both coaxial incident and ring light illumination.
• Stand: Multiple stand options available including table, gantry, and boom stands.

• Sensor: Sony Pregius IMX265 (3MP) or IMX264 (5MP), monochrome or color.
• Sensor Size: 2048 x 1536 / 1/1.8” (IMX265) or 2448 x 2048 / 2/3” (IMX264).
• Frame Rate: 37 fps (IMX265) or 24 fps (IMX264).
• Pixel Size: 3.45µm.

• Software: OptoViewer 2.0 software included. Plugins available for various applications.

• Interface: USB3.1 Gen 1 type C or GigE RJ45, 24V, M8 Plug.
• Dimensions: 40mm W x 175mm L x 80mm H.

• Weight:1.5 lb (700g)

• Country of Origin: Germany
• View the Opto IM Compact M Datasheet
