Electronics Inspection Microscope 7x-45x
SKU:
EI-S6-VTS-Binoc
Price: $1,340.00
SKU:
EI-S6-VTS-Trinoc
Price: $1,440.00
SKU:
EI-S6-VTS-Digital
Price: $2,269.00

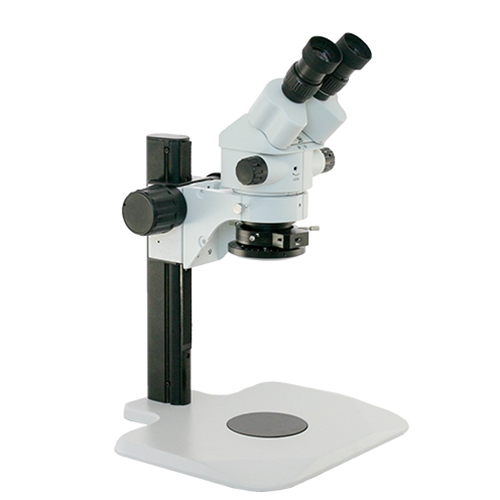

The Richter Optica electronics inspection stereo zoom microscope provides zoom magnification of 7x - 45x and is on a track stand with polarizing LED ring light to reduce glare on electronic parts. Magnification range can be adjusted by using different eyepieces or auxiliary lenses.
- Head: Binocular or trinocular body. Viewing head rotates 360°, locks in place by tightening set screw. Digital option includes 0.35x c-mount adapter and 5.1mp microscope digital camera and software when ordering.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- Specimen Stage: Supplied with 95mm black and white stage plate.
- Stand: Track stand with ergonomic, low-profile base.Track height is 325mm.
- Working Distance: 100mm.
- Focusing: Coarse focusing. Focus knob is tightness adjustable.
- Illumination: LED polarizing ring light to reduce glare. 120 LED lights provide cool, bright illumination. Light intensity rheostat control 0-100%. Rotatable analyzer 360º, polarizer drops into slot and is removable. 100~240V, UL and CE certified.
- Digital Option: If the digital option is selected the microscope system includes a trinocular head, 0.35x c-mount adapter and USB 5.1mp camera with software. Software can be used to capture and save images (PC or MAC) or make measurements (PC only). If you want to make measurements with the included software you will need a stage micrometer to calibrate the software. This can be added when ordering.
- Size & Weight: 12.6" x 12", x 13.4" H, 12 lbs.
- Warranty: 5 Year warranty on microscope, 1 year on camera.
- Instruction Manual
