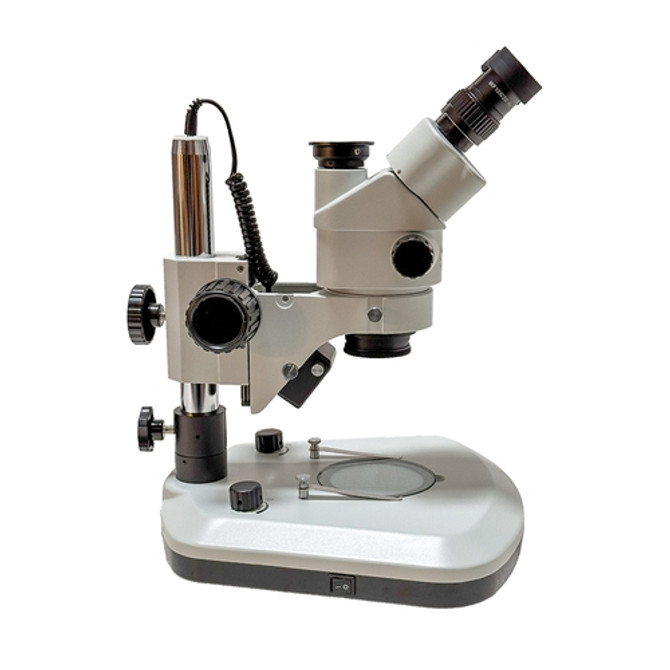

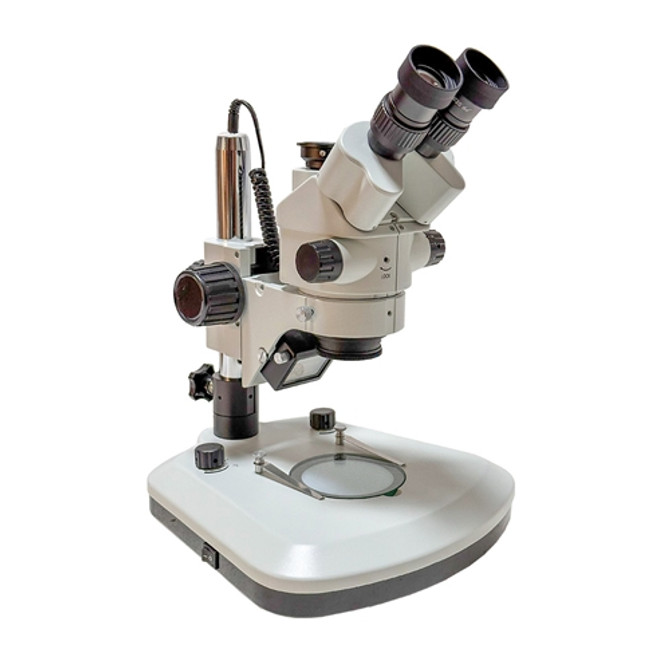

Richter Optica S6T Basic Stereo Zoom Trinocular Microscope 7x-45x

The Richter Optica S6T trinocular stereo microscope has zoom magnification of 7x - 45x and is on a light dual LED post stand with high intensity LED lights.

Head: Trinocular body. Viewing head rotates 360°, locks in place by tightening set screw.

Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.

Objective Lenses:  Zoom range of 0.7x - 4.5x.

Zoom Ratio: 6.4:1

Total Magnification: 7x - 45x. For alternate magnifications, eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.

Specimen Stage: Supplied with 100mm glass stage plate. Includes two locked-on stage clips.

Stand: Post stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control and each light operates independently of the other. 100~240V.

Working Distance: 100mm

Focusing: Coarse focus adjustment.

Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top light has bright individual LED lights.

Stand Size & Weight: 11.5" W x 12" D, 14.75" H, 9.2 lbs.

Warranty: 5 Year warranty.

Includes: Dust Cover.

Click here for Instruction Manual
