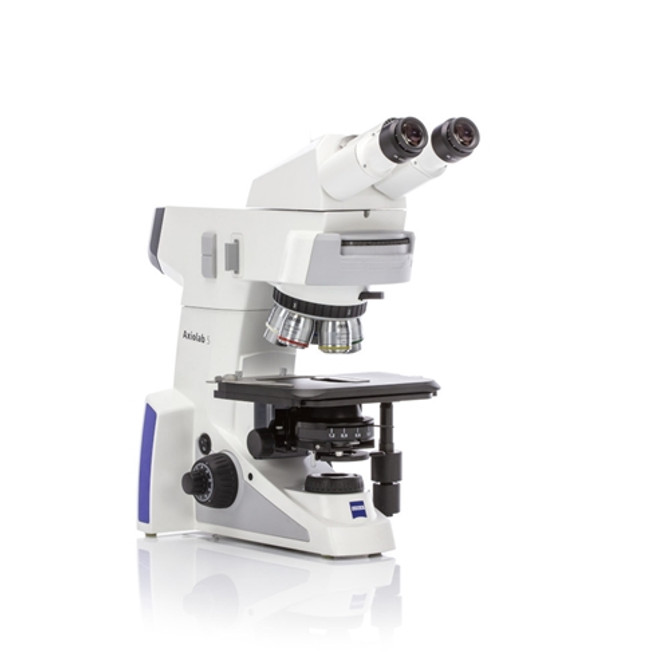

This Axiolab 5 IMA/USP 788 microscope provides the required 100x magnification, has been calibrated with a NIST certified stage micrometer and the magnification factor of the microscope determined prior to installation of the custom IMA/USP 788 reticle. Both episcopic brightfield internal illumination and external auxiliary illumination are provided. This microscope meets IMA/USP 788 standards for the Microscopic Particle Test Count. For optimal observation, the testing should be carried out under conditions limiting particulate matter, preferably in a laminar-flow cabinet without use of any reflective lid.
- Objective Lenses: Infinity corrected EC Epiplan Achromat 5x, 10x, 20x objectives.
- EC Epiplan HD 5x/0.13, WD = 11.8mm
- EC Epiplan HD 10x/0.25, WD = 11mm
- EC Epiplan HD 20x/0.40, WD = 3.2mm
- Viewing Head: Your choice of binocular head inclined 30º or ergonomic trinocular head adjustable from 5-30º with 100:0/0:100 photo tube upright image.
- Eyepieces: Widefield 10x / 22 focusing eyepieces. Diopter adjustment +/-5. Interpupillary distance adjustable from 48-75mm. Includes eyecups. IMA/USP 788 counting reticle (26mm diameter) is installed and has been manufactured specifically for the magnification factor of this microscope.
- Stage Micrometer: Includes NIST certified 1mm / 100 division stage micrometer.
- Total Magnification: 50x, 100x, 200x.
- Specimen Stage: mechanical stage with hardcoat anodized surface, 75mm x 30mm X-Y movement with 220mm x 150mm stage plate.
- Focusing: Coarse and fine focusing. Z focus range is 15mm.
- Condenser: None included. Can be upgraded to include transmitted light.
- Illumination: Reflected light illumination white LED 10w (optional 12v 35w halogen available). 100~240V. ECO mode and light management control button. Certified RoHS, CE, CSA. Dual goose neck LED illuminator provided.
- Stand Features: Materials stand includes 4x encoded reflector turret. 5-Postition nosepiece for brightfield/darkfield is encoded. Includes reflector module for brightfield for reflected light.
- Size & Weight: 9" W x 18.6" H x 18.8" D, 24 lb.
- Warranty: 1 year.
- Includes: Dust cover.
