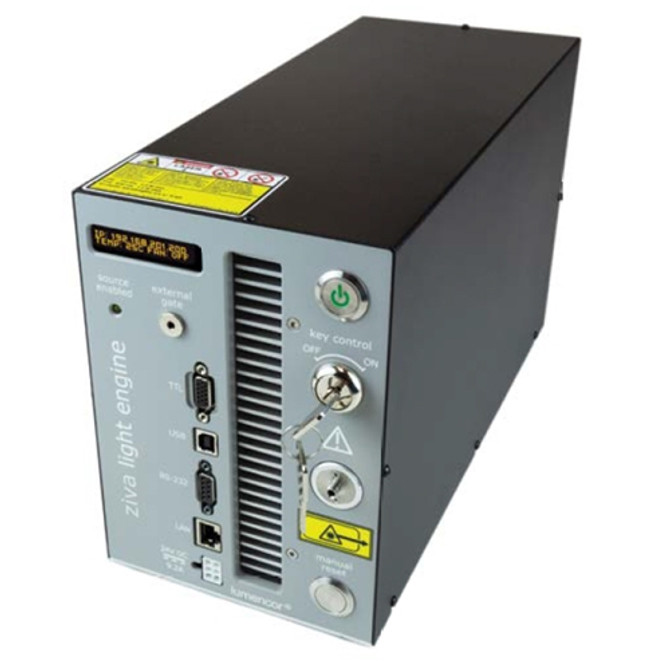

The Lumencor ZIVA is a solid-state laser array for super-resolution microscopy techniques. The ZIVA light engine delivers approximately 100mW of output power at the distal end of a 100µm optical fiber from each of its 4, 5, or 7 individually addressable laser light sources. Specifically designed to couple into small bore fibers, the ZIVA light engine is optimized to match the illumination requirements of structured illumination microscopy (SIM) and other super-resolution microscopy techniques. The control system of the ZIVA features an onboard computer with an embedded command library. These commands give access not only to basic control functions of light source selection, on/off switching, and output intensity control, but also to an extensive panel of operating status reports and preference settings. A GUI, resident on the onboard computer, can be viewed using a web browser via a LAN connection and provides convenient access to many of the command library functions. TTL trigger inputs are provided for all output lines for application requiring fast (100µs) switching. Long term output stability is sustained by active stabilization via an onboard photo diode that continuously monitors the light output and generates a reference signal that is applied to the constituent sources in a feedback loop to maintain constant light output over time.
Contact Microscope World for a quote or additional information.
NOTE: This item is not returnable.
The Lumencor ZIVA is a solid-state laser array for super-resolution microscopy techniques. The ZIVA light engine delivers approximately 100mW of output power at the distal end of a 100µm optical fiber from each of its 4, 5, or 7 individually addressable laser light sources. Specifically designed to couple into small bore fibers, the ZIVA light engine is optimized to match the illumination requirements of structured illumination microscopy (SIM) and other super-resolution microscopy techniques. The control system of the ZIVA features an onboard computer with an embedded command library. These commands give access not only to basic control functions of light source selection, on/off switching, and output intensity control, but also to an extensive panel of operating status reports and preference settings. A GUI, resident on the onboard computer, can be viewed using a web browser via a LAN connection and provides convenient access to many of the command library functions. TTL trigger inputs are provided for all output lines for application requiring fast (100µs) switching. Long term output stability is sustained by active stabilization via an onboard photo diode that continuously monitors the light output and generates a reference signal that is applied to the constituent sources in a feedback loop to maintain constant light output over time.
