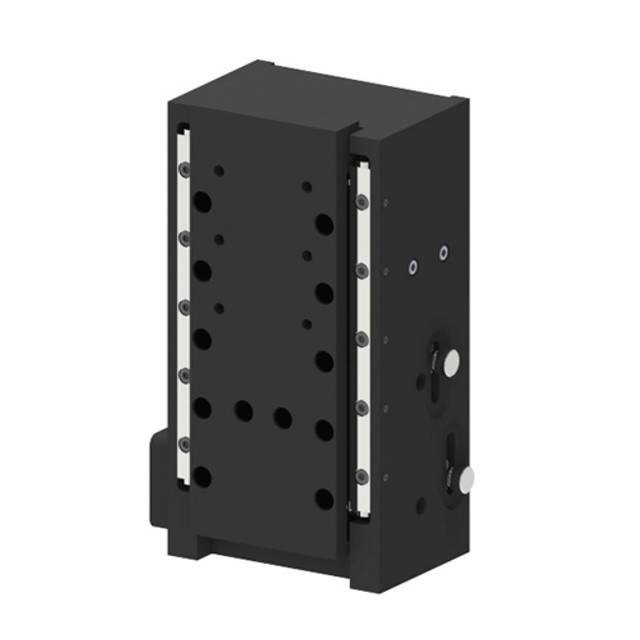

Z Axis Motorized Focus Block Extended Travel

Z Axis Motorized Focus Block Extended Travel

No reviews yet Write a Review

The Prior Scientific FB210 Z-Axis motorized focus block provides precise focus adjustments for routine microscopy, sample translation, and Z-stacking. The high …

SKU:

Focus Holder Features: Motorized

$4,505.00 - $6,505.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

The Prior Scientific FB210 Z-Axis motorized focus block provides precise focus adjustments for routine microscopy, sample translation, and Z-stacking. The high load capacity of the drive allows Prior Scientific motorized stages to be mounted directly, in order to provide a standalone XYZ three axis stage system that is fully controlled by Prior's ProScan III controller.

Z-Axis Motorized Focus Block specifications:

Encoded: Your choice of non-encoded or encoded. Select when ordering.
Travel Range: 50mm
Resolution: 20nm (non-encoded), 100nm (encoded)
Repeatability: +/-0.7µm (non-encoded), +/-0.3µm (encoded)
Speed Range: 1-14mm/s
Controlled By: ProScan III controller
Max Load: 14kg (30.8 lbs)
Cable Length: 1m
Dimensions: 104mm W x 66mm D x 165mm H
Included: Single axis stepper motor drive. Does not include brackets or base.

View the Z Axis Motorized Focus Block FB210 Datasheet

Prior Scientific Part #: FB210, FB210E

NOTE: This item is not returnable.
