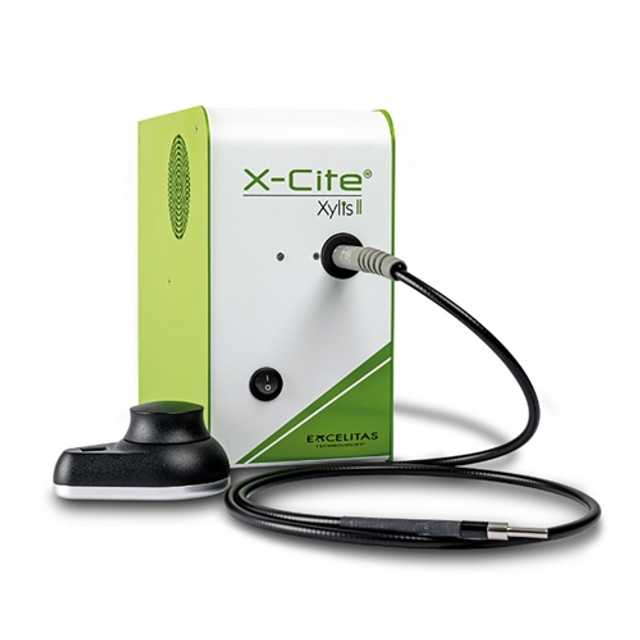

X-Cite XYLIS II Model XT730L UV Wavelength 385nm

The X-Cite XYLIS II model XT730L provides extended broad spectral range for excitation from DAPI to Cy7. The XYLIS II is 10dB quieter than the original XYLIS and offers precise intensity control for sensitive samples. This illuminator is a true arc lamp replacement for routine and advanced fluorescence imaging applications. It has the broadest spectrum available in a white light LED for fluorescence microscopy and rivals traditional arc lamps for brightness, making it ideal for compound and stereo microscopes.

Compare the available X-Cite illuminators here.

• Wavelength Range: 380-770nm
• LED Peaks (nm): 385, 430, 475, 545, 635, 735
• Liquid Light Guide: 1.5m or 3m are available. Not all packages include a liquid light guide. Check packages above when ordering.
• Control Options: speedDial, On/OFF- TTL compatible, RS-232 commands, Foot Pedal (optional)
• I/O Connections: BNC input, USB (B-type), 3.5mm stereo plug
• Collimating Adapter: Includes collimating adapter for Nikon, Leica, Zeiss, Olympus, or Motic. When ordering please provide specific microscope for use and appropriate adapter will be provided.
• Lamp: LEDs rated to 25,000 hours or 3 years.
• Shutter Control: Includes port for optional foot pedal control for easy, hands-free operation.
• Power Supply: 100~240 VAC, universal input, RoHS, CE, Certified to IEC, Canadian and US Standards.
• Warranty: 1 Year excluding liquid light guide, LEDS 25,000 hours or 3 years.

View the X-Cite XYLIS II Brochure
