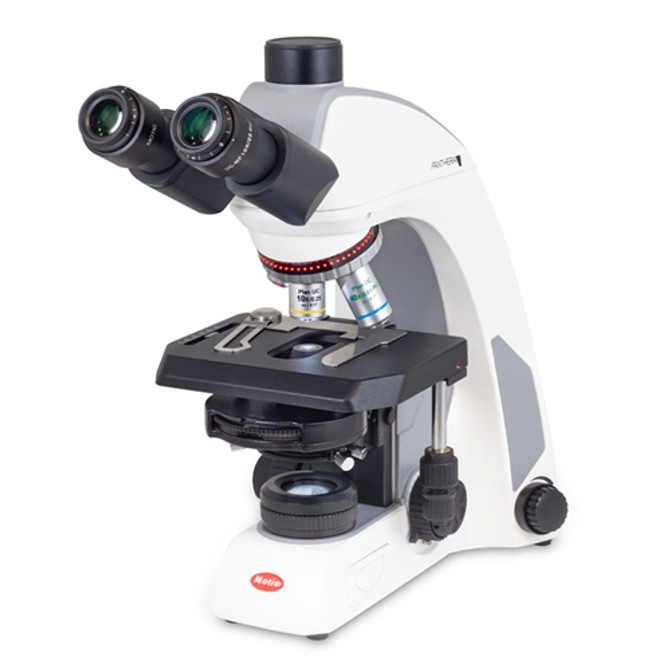

The WWC2 wastewater treatment microscope was created to identify bacteria and other organisms in wastewater using full phase contrast technique. This wastewater…
The WWC2 wastewater treatment microscope was created to identify bacteria and other organisms in wastewater using full phase contrast technique. This wastewater treatment microscope can be used in wastewater treatment to identify amoeba, rotifers, stalked ciliates, hyphomicrobium, and more. For help with identification you may want to view the Wastewater Treatment Organism Identification Guide.
CCIS UC Plan Achromatic 100x/1.25 PH3, Oil, WD = 0.16mm
Viewing Head: Trinocular Siedentopf head inclined 25º, 360º swivel with fixed 50/50 beam splitter.
Eyepieces: UC-WF 10x / 22 focusing eyepieces, with diopter adjustment +/-5. Accepts 25mm diameter reticle. Interpupillary distance adjustable from 48-75mm.
Total Magnification: 40x, 100x, 400x, 1000x.
Specimen Stage: 185mm W x 145mm compact mechanical stage with built-in low position rackless coaxial stage control and double slide holder. Travel range X&Y 75 x 50 mm.
Focusing: Coaxial coarse and fine focusing with tension adjustment. Coarse focus drive is 25mm/rev, fine focus is 0.2mm/rev.

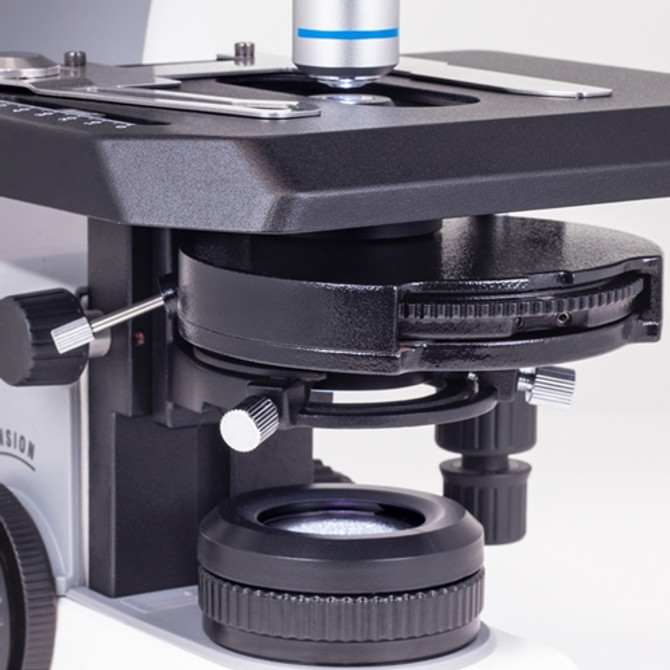

Condenser: Phase contrast turret condenser with BF/DF/Ph1/Ph2/Ph3.
Illumination: Koehler illumination with 3W LED and 6v 30w halogen lamp (easy to swap out). Corded 100~240V with cord storage on microscope frame. Light intensity control with LED intensity display on both sides of microscope. The Motic LightTracer features light memory, sleep mode (auto on-off) and nosepiece LED light intensity indicator. Certified: CE
Stand Features: Full Kohler, effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Size & Weight: 11.7" H x 8.3" W x 15.6" D, 18.5 lb.
Warranty: 5 Years, excluding electrical parts.
Includes: Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, phase centering telescope.
The WWC2 wastewater treatment microscope was created to identify bacteria and other organisms in wastewater using full phase contrast technique. This wastewater treatment microscope can be used in wastewater treatment to identify amoeba, rotifers, stalked ciliates, hyphomicrobium, and more. For help with identification you may want to view the Wastewater Treatment Organism Identification Guide.
CCIS UC Plan Achromatic 100x/1.25 PH3, Oil, WD = 0.16mm
Viewing Head: Trinocular Siedentopf head inclined 25º, 360º swivel with fixed 50/50 beam splitter.
Eyepieces: UC-WF 10x / 22 focusing eyepieces, with diopter adjustment +/-5. Accepts 25mm diameter reticle. Interpupillary distance adjustable from 48-75mm.
Total Magnification: 40x, 100x, 400x, 1000x.
Specimen Stage: 185mm W x 145mm compact mechanical stage with built-in low position rackless coaxial stage control and double slide holder. Travel range X&Y 75 x 50 mm.
Focusing: Coaxial coarse and fine focusing with tension adjustment. Coarse focus drive is 25mm/rev, fine focus is 0.2mm/rev.
Condenser: Phase contrast turret condenser with BF/DF/Ph1/Ph2/Ph3.
Illumination: Koehler illumination with 3W LED and 6v 30w halogen lamp (easy to swap out). Corded 100~240V with cord storage on microscope frame. Light intensity control with LED intensity display on both sides of microscope. The Motic LightTracer features light memory, sleep mode (auto on-off) and nosepiece LED light intensity indicator. Certified: CE
Stand Features: Full Kohler, effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Size & Weight: 11.7" H x 8.3" W x 15.6" D, 18.5 lb.
Warranty: 5 Years, excluding electrical parts.
Includes: Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, phase centering telescope.
This wastewater treatment microscope was designed to identify bacteria in wastewater. It features a full phase contrast system used to identify bacteria, rotifers and protozoa in wastewater.
