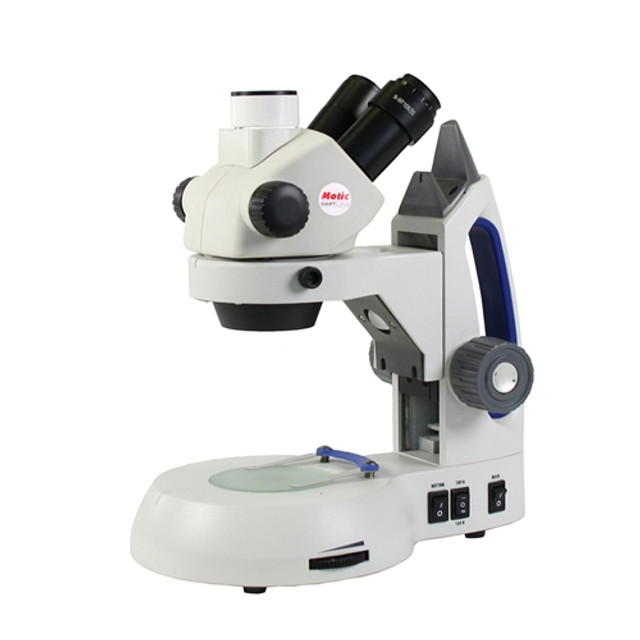

The Swift SM105 series stereo microscopes offer magnification of 10x through 30x with three energy efficient variable bright LED light sources.
- Objective Lenses: Includes built-in 1x-3x zoom objective.
- Eyepieces: Binocular viewing head rotates 360°, locks in place by tightening thumb screw. Interlocked eyepiece tubes with diopter for increased focus ability. Trinocular model is cordless. Paired widefield 10x eyepieces (20mm field of view) are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm. 10x Eyepieces accept 25mm reticle.
- Total Magnification: 10x-30x. Magnification is changed by rotating dial. Field of view at 20x is 10mm, field of view at 30x is 6.5mm.
- Working Distance: 77mm
- Maximum Specimen Height: 36mm
- Specimen Stage: Includes locked-on stage clips for securing specimen, 80mm reversible black and white stage contrast plate and 80mm frosted glass stage plate. Blue filter included for transmitted light.
- Stand: Rugged, cast metal frame with gray enamel finish. Includes cord hangers for corded version.
- Focusing: Rack and pinion focusing with slip clutch and tension adjustment. Slip-clutch system protects against over-focusing.
- Illumination: Energy efficient LED lights provide bright, white and virtually heat-free light. Variable turret (6 LED) lights around objective base, top LED light and bottom LED illumination provide options for illumination. Battery recharger shuts off once charged, no danger of over-charging. Two illumination switches allow for five light settings including: turret, top, bottom, simultaneous turret and bottom or simultaneous top and bottom.
- Size and Weight: 12.5" high, base 7.5" wide, 10 lbs.
- Warranty: Swift Optical lifetime limited warranty covers defective parts and workmanship for the life of the instrument.
- Includes: Vinyl dust cover and eyeshields
Swift SM105-C, SM105T-C
