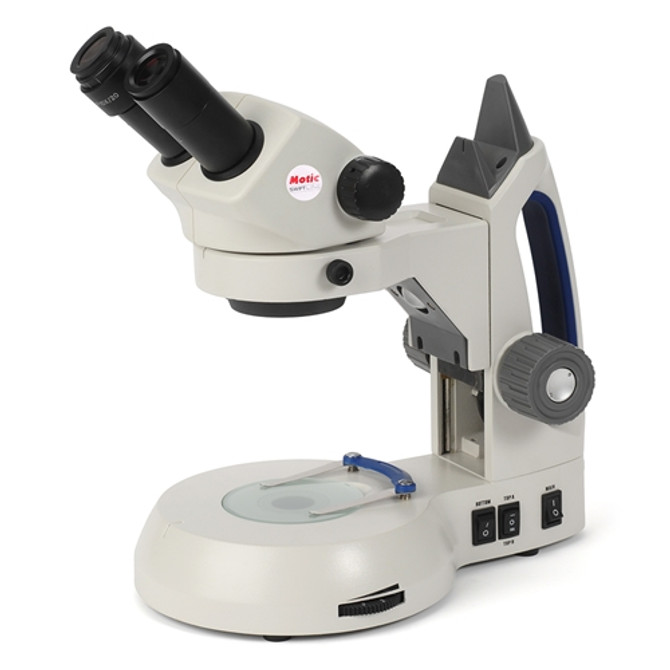

This Swift SM102-C stereo microscopes offers magnification of 20x & 40x with three energy efficient variable bright LED light sources.
- Objective Lenses: Includes built-in 2x & 4x objectives.
- Eyepieces: Binocular viewing head rotates 360°, locks in place by tightening thumb screw. Interlocked eyepiece tubes with diopter for increased focus ability. Paired widefield 10x eyepieces (20mm field of view) are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm. 10x Eyepieces accept 25mm reticle.
- Total Magnification: 20x & 40x. Magnification is changed by rotating dial. Field of view at 20x is 10mm, field of view at 40x is 5mm.
- Working Distance: 77mm
- Maximum Specimen Height: 36mm
- Specimen Stage: Includes locked-on stage clips for securing specimen, 80mm reversible black and white stage contrast plate and 80mm frosted glass stage plate. Blue filter included for transmitted light.
- Stand: Rugged, cast metal frame with gray enamel finish. Includes cord hangers for corded version.
- Focusing: Rack and pinion focusing with slip clutch and tension adjustment. Slip-clutch system protects against over-focusing.
- Illumination: Includes recharger, batteries allow up to 500 recharges, for a total of 25,000 hrs use. Battery recharger shuts off once charged, no danger of over-charging. Energy efficient LED lights provide bright, white and virtually heat-free light. Variable turret (6 LED) lights around objective base, top LED light and bottom LED illumination provide options for illumination. Two illumination switches allow for five light settings including: turret, top, bottom, simultaneous turret and bottom or simultaneous top and bottom.
- Size and Weight: 12.5" high, base 7.5" wide, 10 lbs.
- Warranty: Swift Optical lifetime limited warranty covers defective parts and workmanship for the life of the instrument.
- Includes: Vinyl dust cover and eyeshields
