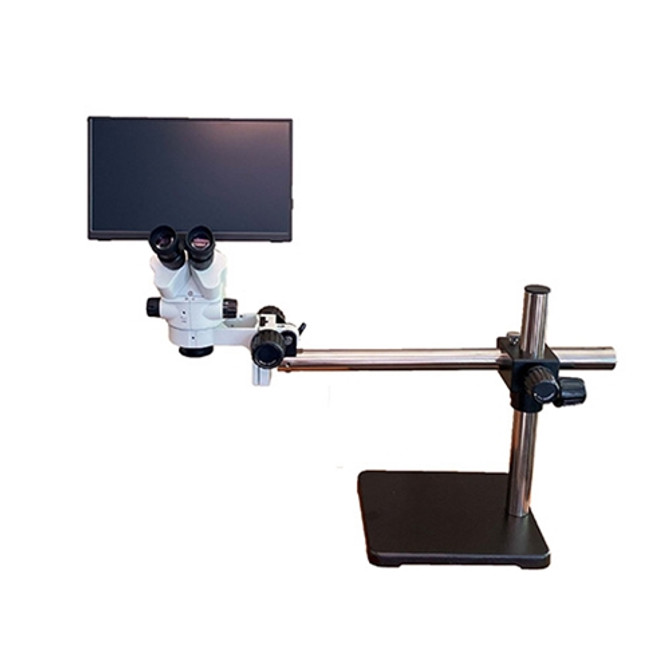

Stereo Zoom Boom LCD Digital Microscope 7x-45x

Richter Optica S6LCD-BMSQ digital HD LCD stereo zoom microscope provides magnification of 7x-45x. Includes LED ring light. The boom stand provides working room for larger objects and includes a HD monitor for easy image display.

• Head: Trinocular body viewing head rotates 360º, locks in place by tightening set screw. Includes 0.5x c-mount adapter.
• Eyepieces: Includes widefield 10x/20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm - 75mm. Diopter on both eyetubes. Eyepieces accept a 24mm diameter reticle. 15x and 20x eyepieces are available for purchase separately.
• Objective Lenses: Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.4:1
• Total Magnification: 7x - 45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
• Stand: Heavy duty boom stand with square base. Focus holder connects to stand via pin mount. Horizontal post is 21.25" long. Vertical post is 15.1" tall and an 8.9" extension post is available. Locking ring on vertical post. Base dimensions are 10.2" x 11.4". Weight is 32 lbs.
• Working Distance: 100mm
• Focusing: Focusing holder has coarse focusing adjustment.
• Illumination: 4 quadrant LED ring light with ring light adapter.
• Camera: Includes c-mount adapter for camera connection to HD 1080p camera. The camera live resolution is 1920x1080 pixels with 2 megapixel image capture resolution. Video capture resolution 1080p HD. USB output for mouse. Live images 1080p / 60 fps. Image capture to USB2.0 flash drive (drive not included). Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. HDMI direct connection to monitor.
• LCD HD Monitor: 13" LCD HDMI monitor, 1080p. LED backlight. Monitor mounts directly to HD camera and includes 110~240V power cord and HDMI cable.
• Warranty: 5 year warranty on microscope. One year on camera and monitor.

View the S6 Manual.
