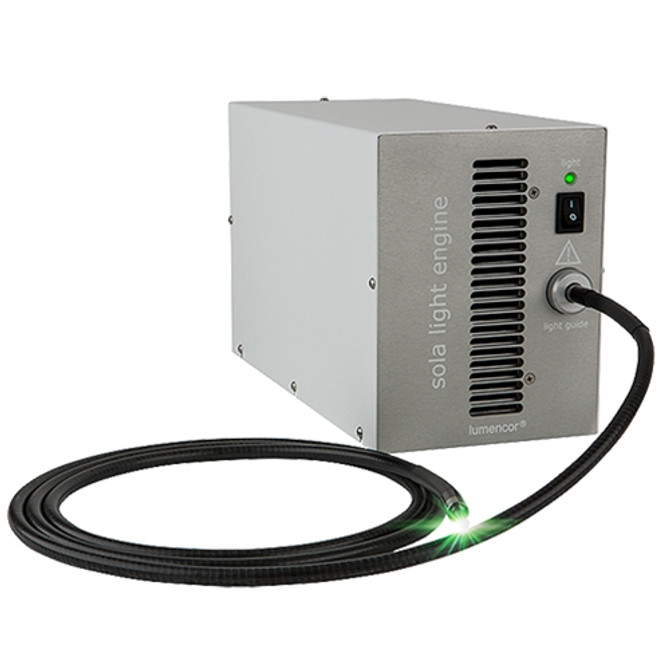

The SOLA FISH LED Light Engine provides output that is spectrally optimized relative to the excitation characteristics of fluorescence in situ hybridization (FISH) probes, delivering sufficient intensity to generate readily detectable fluorescence from weak hybridization signals.
- Lamp: LED, >20,000 hours of visible, 3-4W visible white light, no UV/NIR. Light comparable to 120w metal halide illuminator.

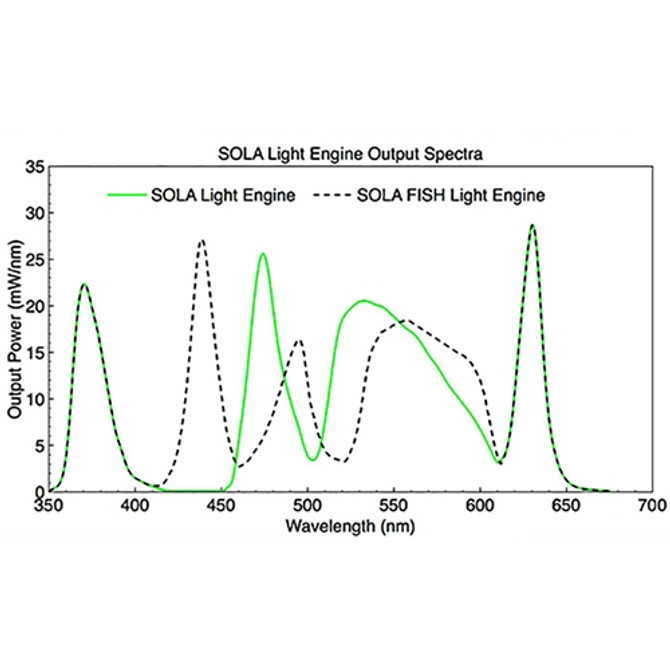

- Wavelength Range: 350 - 680nm unfiltered output spectrum optimized for fluorescence in situ hybridization (FISH) applications.
- Light Guide: 3mm diameter liquid light guide (2m in length) and light guide adapter included.
- Collimator: Available for all major microscope brands.
- Control Interface: USB connector for remote control by light engine control pod or host computer. BNC input port for TTL-activated electronic shutter. Manual on/off, foot pedal plug. Foot pedal and control pod sold separately (see below).
- Warmup Time: 1 second.
- Size/Weight: W x L x H = 9 x 18 x 23cm (3.5" x 7.1" x 9"), 8lbs.
- Warranty: 36 Months
- Required: A complete set of excitation and emission filters.
- Certifications: TUV, CE, RoHS, LEED
View the SOLA datasheet here
Lumencor Part #: 90-10653
