This SCHOTT ColdVision MC-LS LED Light Source with a ring light is designed for use in stereo microscopy and can be used with microscope objectives 66mm in diam…

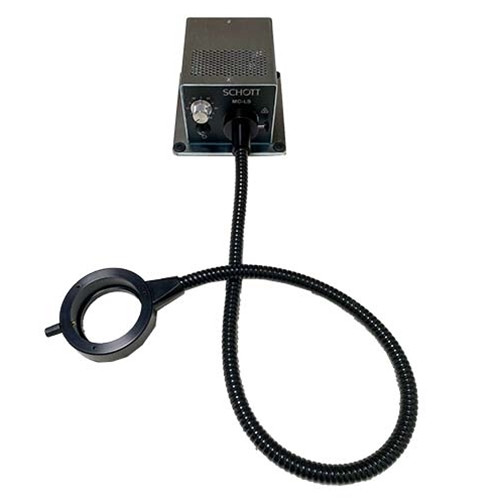

This SCHOTT ColdVision MC-LS LED Light Source with a ring light is designed for use in stereo microscopy and can be used with microscope objectives 66mm in diameter. The ring light fits ZEISS stereo microscope objectives. The system includes the MC-LS LED light source and a ring light.
Ring light specifications:
Objective diameter range: 66mm
Working distance range: 38 to 152 mm (1.5" to 6")
Length of connection to box: 838mm (33")
MC-LS Specifications:
Color Temperature: 5400K cool white.
Luminous Flux: Up to 8502 lm light flux.
Max Active Light Guide Ø: 13mm
Voltage: 100~240V, 50/60Hz
Light Box: Continuous dimming, fan cooling, temperature monitoring for protection of the LED light engine, high resistance to vibration and shock.
Analog and Digital Remote Control: USB, RS-232, 9-pin connector.
Light Box Dimensions / Weight: 158mm x 145mm x 98mm (6.2" x 5.7" x 3.9"), 2kg (4.62 lb)
This SCHOTT ColdVision MC-LS LED Light Source with a ring light is designed for use in stereo microscopy and can be used with microscope objectives 66mm in diameter. The ring light fits ZEISS stereo microscope objectives. The system includes the MC-LS LED light source and a ring light.
Ring light specifications:
Objective diameter range: 66mm
Working distance range: 38 to 152 mm (1.5" to 6")
Length of connection to box: 838mm (33")
MC-LS Specifications:
Color Temperature: 5400K cool white.
Luminous Flux: Up to 8502 lm light flux.
Max Active Light Guide Ø: 13mm
Voltage: 100~240V, 50/60Hz
Light Box: Continuous dimming, fan cooling, temperature monitoring for protection of the LED light engine, high resistance to vibration and shock.
Analog and Digital Remote Control: USB, RS-232, 9-pin connector.
Light Box Dimensions / Weight: 158mm x 145mm x 98mm (6.2" x 5.7" x 3.9"), 2kg (4.62 lb)
