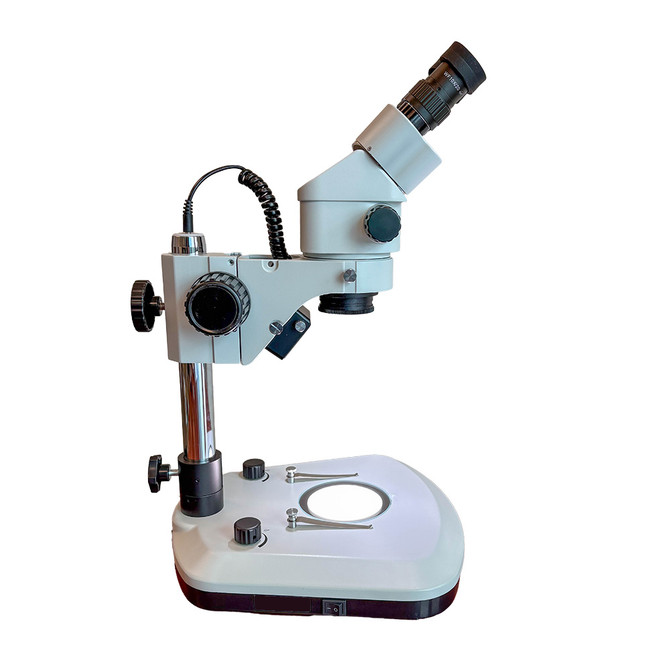

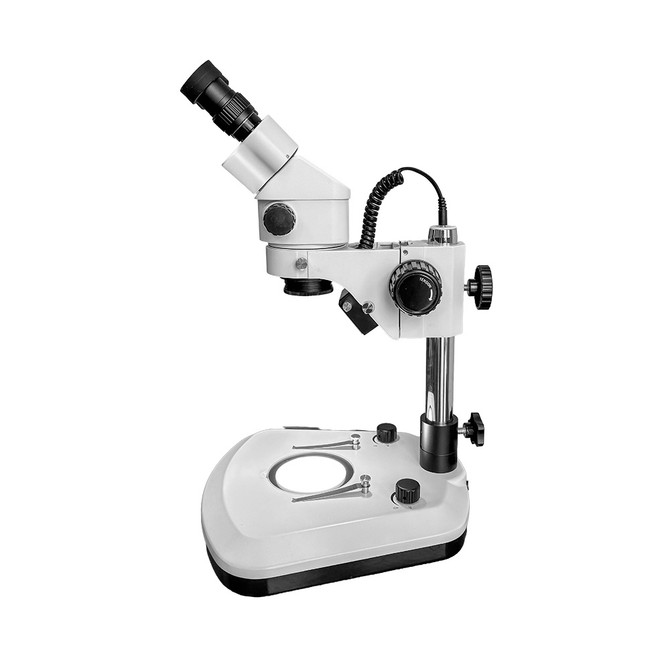

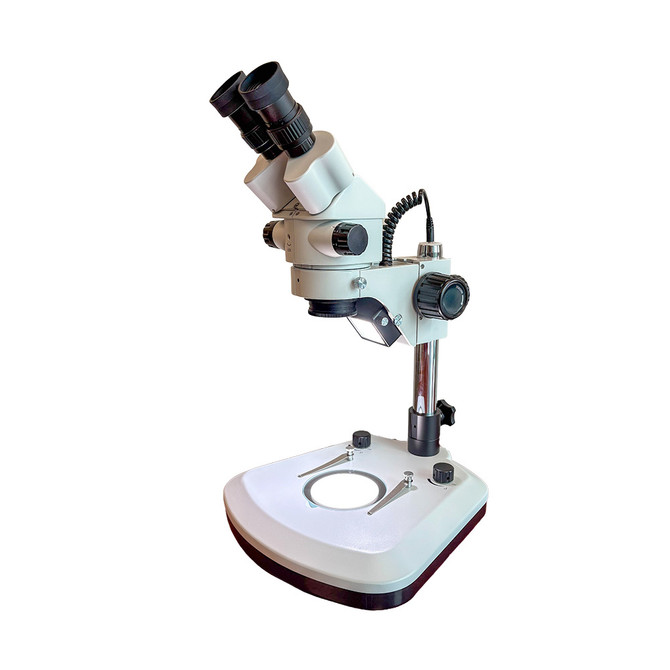

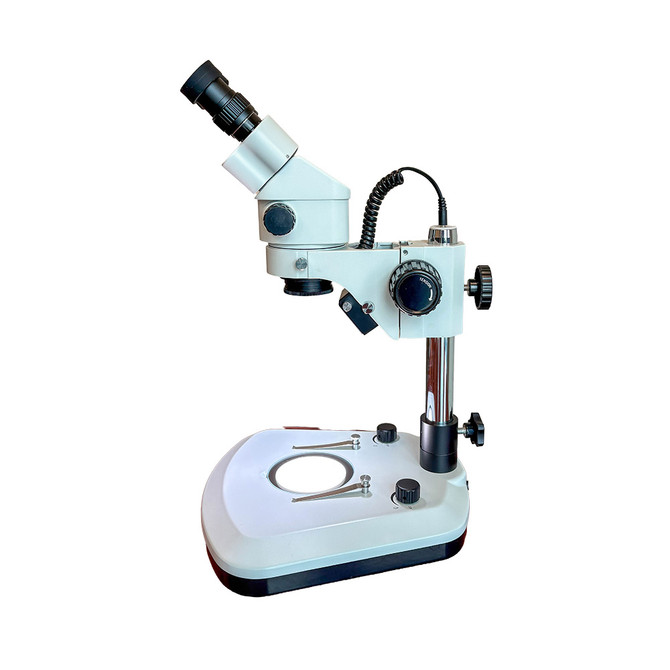

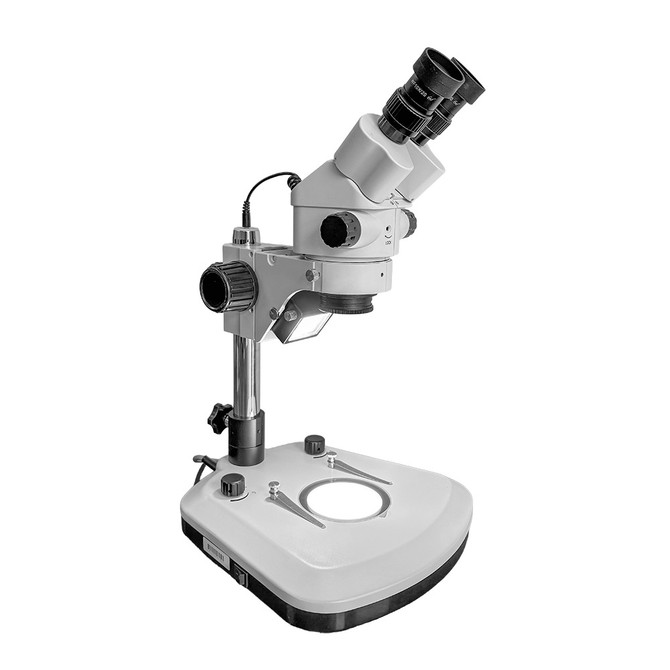

The Richter Optica S6-ILS2 stereo microscope has zoom magnification range of 7x - 45x. The system includes a stand with built-in, high intensity top and bottom LED illumination.
- Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces in focusing eyetubes. Interpupillary adjustment from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
- Objective Lenses:Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x - 45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at specific stopping point.
- Specimen Stage: Supplied with a 100mm glass stage plate. Includes two locked-on stage clips.
- Stand: Post stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control, and each light operates independently of the other. 100V~240V.
- Working Distance: 100mm
- Focusing: Coarse focus adjustment.
- Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top LED light has bright individual LED lights.
- Stand Size / Weight: Base is 11.5" W x 12" D, 14.75" H, 9.2 lbs.
- Warranty: 5 Year warranty.
- Includes: Dust Cover.
Instruction Manual
