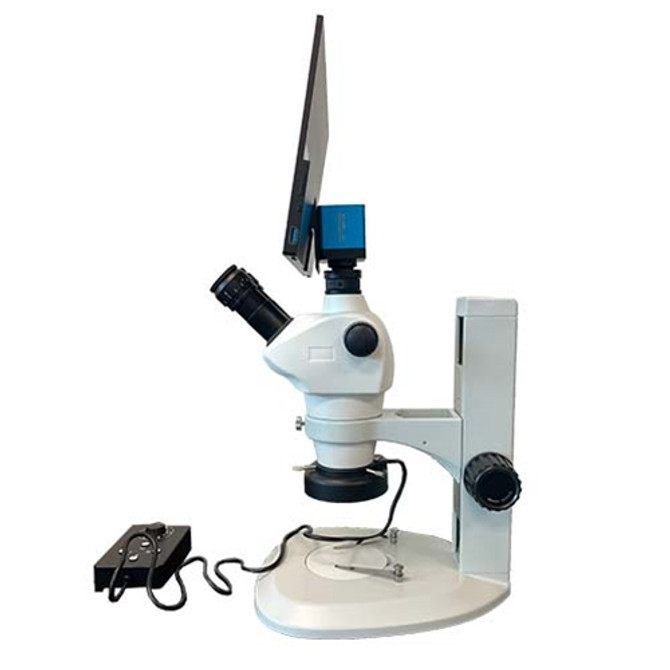

The Richter Optica S850-LCD digital stereo zoom microscope provides magnification of 8x-50x zoom. Select from a LED dual pipe or LED ring light. The system includes a HD monitor and a 2 mp camera for easy display of image.
- Head: Trinocular body, 45º inclined. Viewing head rotates 360°, locks in place by tightening set screw. Includes 0.4x focusing c-mount adapter.
- Eyepieces: Includes widefield, high eyepoint plan 10x eyepieces, FN 22mm. Diopter adjustable ±5 on each eyepiece. Interpupillary adjustment from 52mm to 75mm. Eyepieces accept 24mm diameter reticle. 20x eyepieces are available and can be ordered below.
- Objective Lenses: Zoom range of 0.8x - 5x. Microscope has click stops for making accurate measurements.
- Zoom Ratio: 6.3:1
- Total Magnification: 8x - 50x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Extended magnification of 4x - 200x available.
- Specimen Stage: Supplied with black/white stage plate and stage clips.
- Stand: Does not have built in lighting. This package includes either LED dual pipe lights or a LED ring light; select when ordering.
- Working Distance: 115mm
- Focusing: Coarse focus adjustment, tension adjustable.
- Illumination: Select LED dual pipe light or four quadrant LED ring light (one of these lights is included).
- The LED dual pipe light has 3w LED bulbs on each pipe end. Bulb life expectancy is 20,000 hours. 110v-240v power supply with variable intensity control. Each self-supporting dual pipe is 24" in length. Lights mount to the stand with a bracket.
- The LED ring light has four quadrant zones that can be turned on or off with push of a button, which is ideal for reducing glare. The lights have variable intensity, with brightness adjustable from 0 - 100%. 72 LED lights offer cool, bright illumination.
- Camera / Monitor: HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to USB2.0 flash drive (drive not included). Live image 1080p / 60 fps. HDMI connection to 13" HD monitor.
- Size & Weight: 11.8" W x 11.8" D, 12.8" H, 10 lbs.
- Warranty: 5 Year warranty on microscope, 1 year warranty on HD camera and monitor.
- Includes: Dust Cover.
Click here for S850 Instruction Manual
