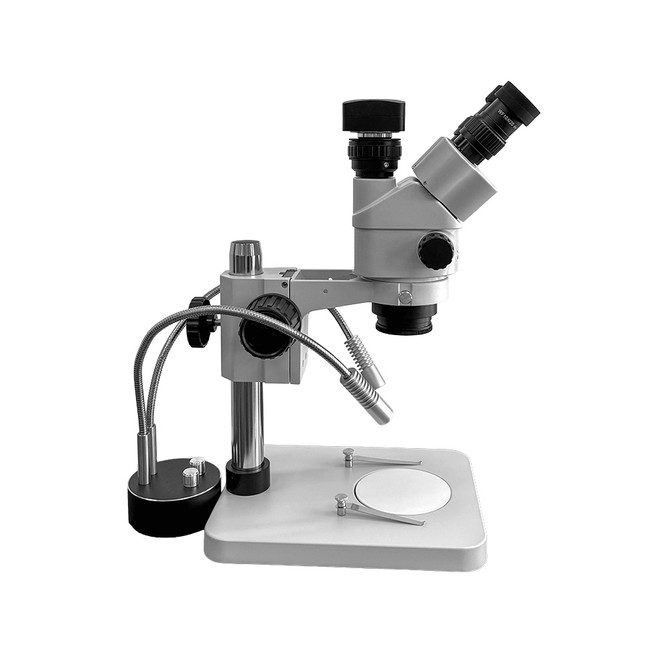

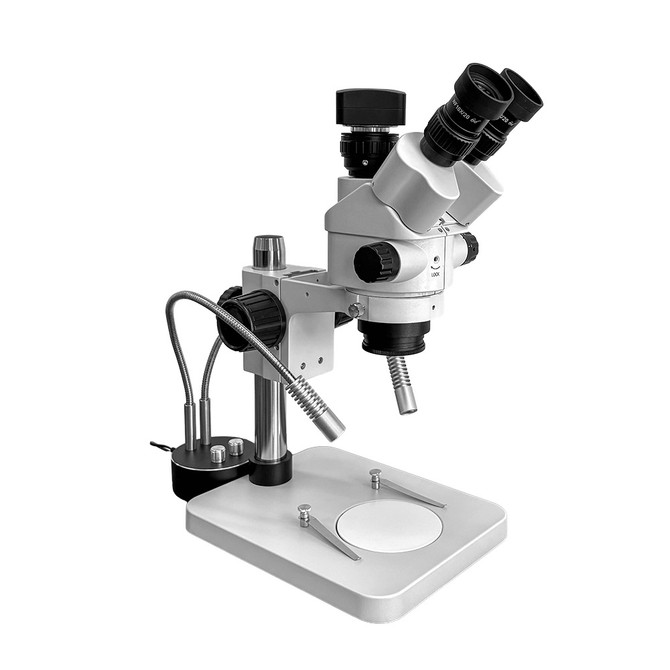

The Richter Optica S6D-SPS-LDG digital stereo microscope has zoom magnification of 7x - 45x and is on a post stand with a dual LED pipe light. The system includes a 5.1 mp digital camera.
- Head: Trinocular body. Viewing head rotates 360° and locks in place by tightening set screw. Includes 0.35x c-mount adapter.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Diopter on both eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- Specimen Stage: Supplied with 100mm black and white stage plate. Two locked-on stage clips.
- Stand: Post stand with ergonomic, low-profile base, rugged, cast metal frame with gray enamel finish. Post stand is 11.25" tall.
- Working Distance: 100mm.
- Maximum Specimen Height: 4.75" (120mm).
- Focusing: Rack & pinion focusing has slip clutch to protect mechanism against over-turning, and special tension adjustment.
- Illumination: LED dual pipe light attaches to post stand and has rheostat control. Each pipe light contains a 3W LED light.
- Camera: USB3.0 camera includes software for image capture and measurement. 5.1mp camera: 2592x1944. Capture motion video 20 fps @ 2592x1944, 40 fps @ 1296x972.
- Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer included is a dual ruler with 1" equally spaced and numbered 0-10 as well as 25mm equally spaced and numbered 0-25. If NIST certification is selected 10 points in total will be certified. Please note that NIST certification takes approximately 2 weeks.
- Computer Requirements: Windows 7, 8, 10, 11 (32 & 64 bit), Mac OSX (please note measurement feature will not work on a MAC). CPU Intel Core2, 2.8Ghz or higher. USB Port 2.0 or higher. RAM 2 GB or higher.
- Size & Weight: Base is 8.25" W x 11" D, 15" H, 9 lbs.
- Warranty: 5 Year warranty on microscope. 1 Year limited warranty on camera.
