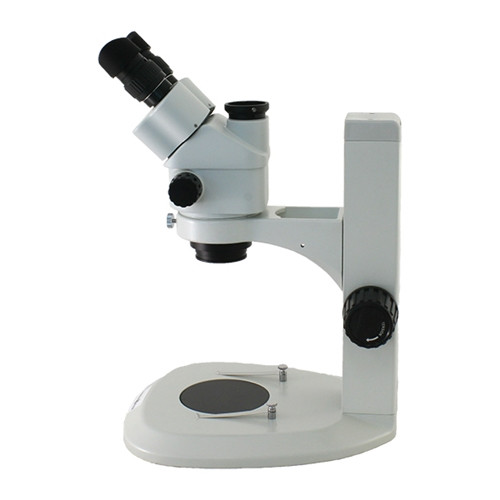

The Richter Optica S6-TS stereo microscope has zoom magnification of 7x - 45x and is on a track stand. This system is available with a binocular or trinocular head, and a 5.1 mp digital camera may be added.
- Head: Binocular or trinocular body. Viewing head rotates 360°, locks in place by tightening set screw. Digital option includes a c-mount adapter and 5mp microscope digital camera and software when ordering.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- Specimen Stage: Supplied with 90mm black and white stage plate. Two locked-on stage clips.
- Stand: Track stand with ergonomic, low-profile base.
- Working Distance: 100mm.
- Maximum Specimen Height: 1.69" (43mm). Stand can be adjusted to accommodate larger specimens. If focusing holder is moved up on stand maximum specimen height is 5" (127.5mm).
- Focusing: Rack & pinion focusing has slip clutch to protect mechanism against over-turning and special tension adjustment. 120mm focusing stroke.
- Illumination: LED ring light.
- Camera: If the digital option is selected when ordering a 5.1mp USB3 camera with software for image capture and measurement is included. If you wish to make measurements with the software, a stage micrometer is required and can be ordered separately.
- Size & Weight: Base is 9.5" W x 11" D, 16" H, 9 lbs.
- Warranty: 5 Year warranty on microscope.
- Instruction Manual
Richter Optica Part #s: S6B-TS, S6T-TS, S6D-TS
