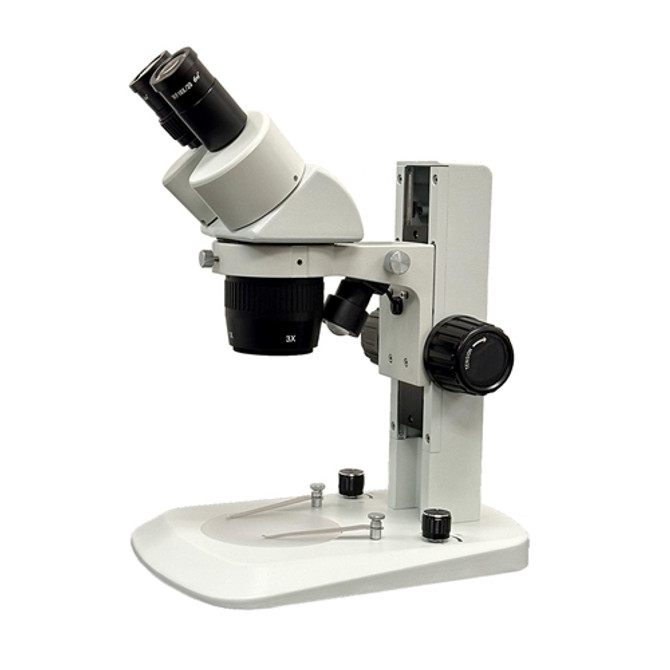

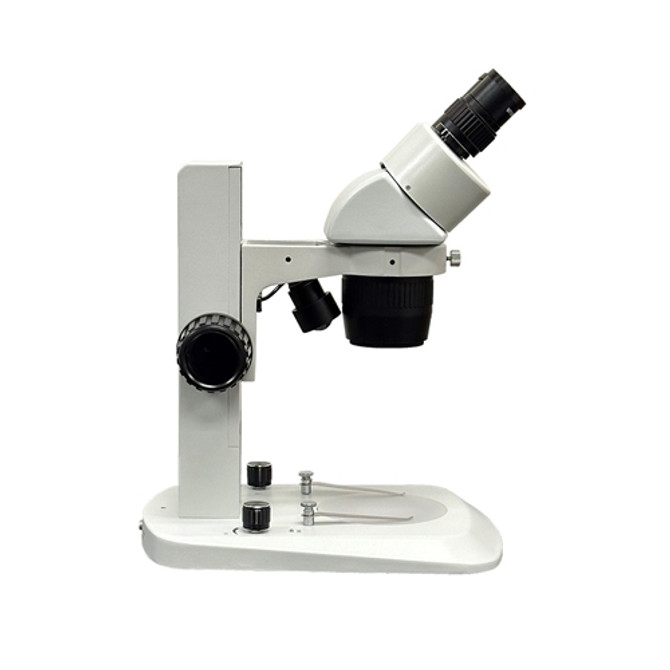

Richter Optica S2-DL 20x/60x Stereo Microscope

The Richter Optica S2-DL stereo microscope has dual magnification of 20x and 60x. Change magnification simply by turning the objective turret.

• Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
• Eyepieces: Includes widefield 20x / 10mm high eyepoint eyepieces. Interpupillary adjustment from 55mm to 75mm. Diopter on left eyetube. 10x and 15x eyepieces are available and can be ordered below.
• Objective Lenses: Paired 1x and 3x objectives are parfocalled, parcentered, and achromatic. Magnification is changed by rotating objective turret 90° to positive click stops.
• Total Magnification: 20x and 60x.
• Specimen Stage: Supplied with a frosted plastic stage plate and two locked-on stage clips.
• Stand: Rugged cast metal frame with white enamel finish. Head moves up and down on track stand with total Z-travel of 4.5". Built-in top and bottom illumination. Focusing holder has top LED light built into it. Bottom LED light shines up through stage plate.
• Working Distance: 100mm
• Maximum Specimen Height: 2.81" (71.45mm)
• Focusing: Rack & pinion focusing, and special tension adjustment located on focusing knobs to adjust tension.
• Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light.
• Size & Weight: Base is 7.5" W x 11" D, 11.5" H, 9 lbs
• Warranty: 5 Year warranty on microscope.

Instruction Manual

Click here to see ideas of things to view with this microscope.
