Reticle Whipple 0.75mm Squares 100 Total
Reticle Whipple 0.75mm Squares 100 Total
Reticle Whipple 0.75mm Squares 100 Total

Reticle Whipple 0.75mm Squares 100 Total

No reviews yet Write a Review
KR-414 glass eyepiece reticle whipple. Whipple 7.5mm x 7.5mm. 100 squares total (10x10). One square in 25 squares (5x5). Diagonal = 10.6mm. Labeled with letters…

Read more
SKU: KR414
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

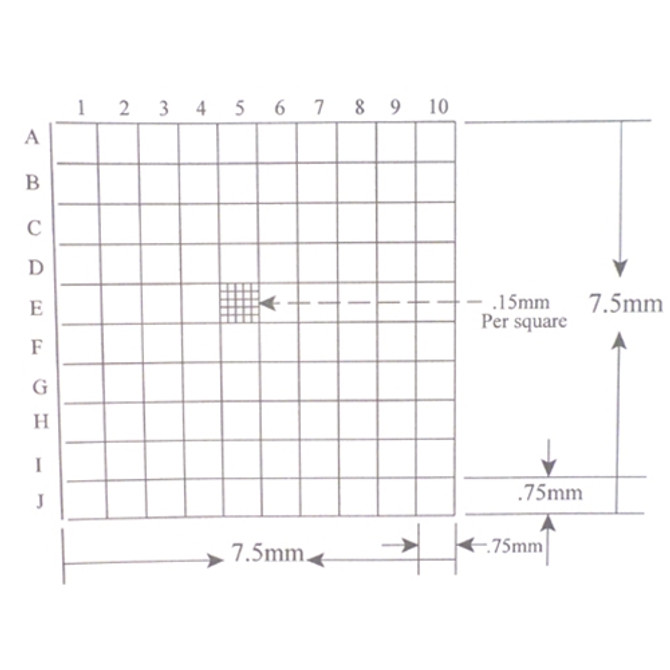

KR-414 glass eyepiece reticle whipple. Whipple 7.5mm x 7.5mm. 100 squares total (10x10). One square in 25 squares (5x5). Diagonal = 10.6mm. Labeled with letters vertical and numbers horizontal. Available in a variety of diameters, select below when ordering.

  • Each Large Square: 0.75mm when using 1x objective.
  • Each Small Square: 0.15mm when using 1x objective.
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.2mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.



NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
