Reticle Pinwheel 20mm 200 Divisions
Reticle Pinwheel 20mm 200 Divisions
Reticle Pinwheel 20mm 200 Divisions

Reticle Pinwheel 20mm 200 Divisions

No reviews yet Write a Review
KR-609 Pinwheel reticle 20mm in 200 divisions. 200 divisions each axis, 100 divisions per leg. Numbered 0-100. Learn how to make accurate measurements when usin…

Read more
SKU: KR609
Measurement: Metric
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

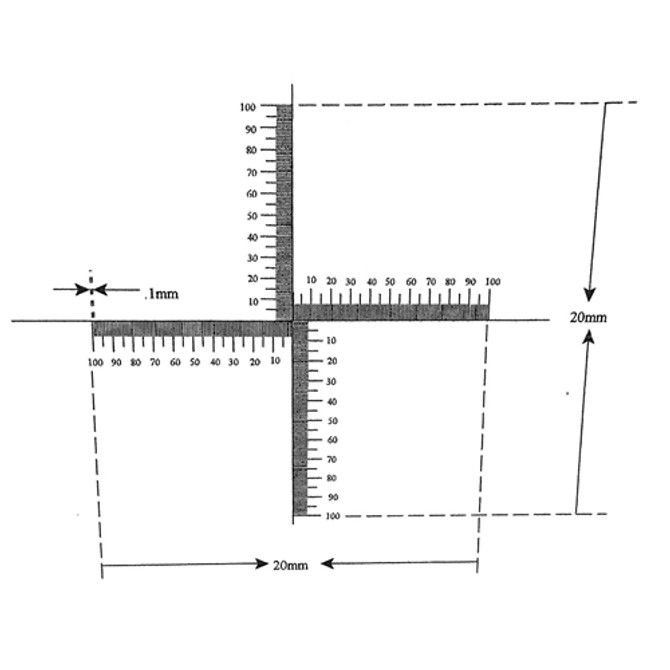

KR-609 Pinwheel reticle 20mm in 200 divisions. 200 divisions each axis, 100 divisions per leg. Numbered 0-100. Learn how to make accurate measurements when using your reticle here and learn about calibrating your microscope here. Reticle is available in a number of different diameters, select when ordering.

  • Divisions: 0.10mm with 1x objective.
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Tolerances: Unless otherwise stated ±0.0002" (± 5 microns)
  • Glass Thickness: 1.5mm ± 0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
