KR-424A glass eyepiece reticle. Grid 12.5mm x 12.5mm. 400 squares total (20x20). Labeled with numbers vertical and letters horizontal. Diagonal = 17.67mm. Avail…

Read more
SKU: KR424A
Measurement: Metric
Square Size: 0.625mm
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

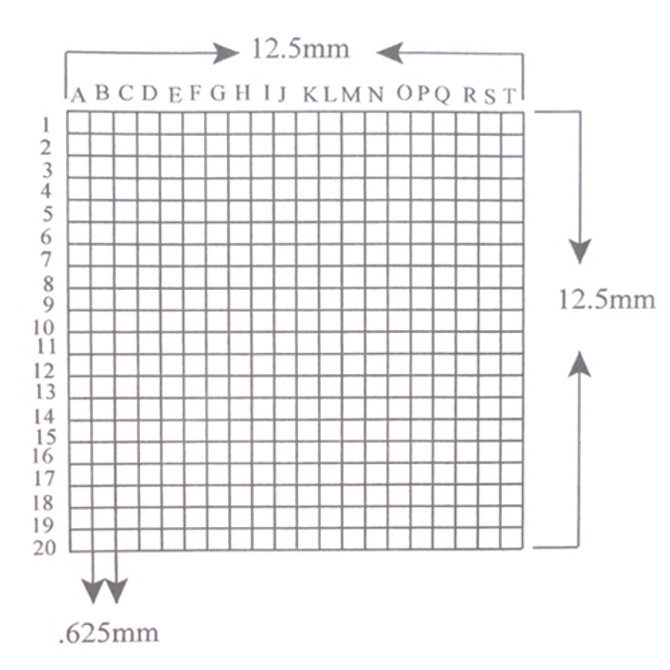

KR-424A glass eyepiece reticle. Grid 12.5mm x 12.5mm. 400 squares total (20x20). Labeled with numbers vertical and letters horizontal. Diagonal = 17.67mm. Available in a variety of diameters; select when ordering.

  • Each Square: 0.625mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
