Reticle 30 Concentric Circles 0.010 - 0.300 Inch
Reticle 30 Concentric Circles 0.010 - 0.300 Inch
Reticle 30 Concentric Circles 0.010 - 0.300 Inch

Reticle 30 Concentric Circles 0.010 - 0.300 Inch

No reviews yet Write a Review

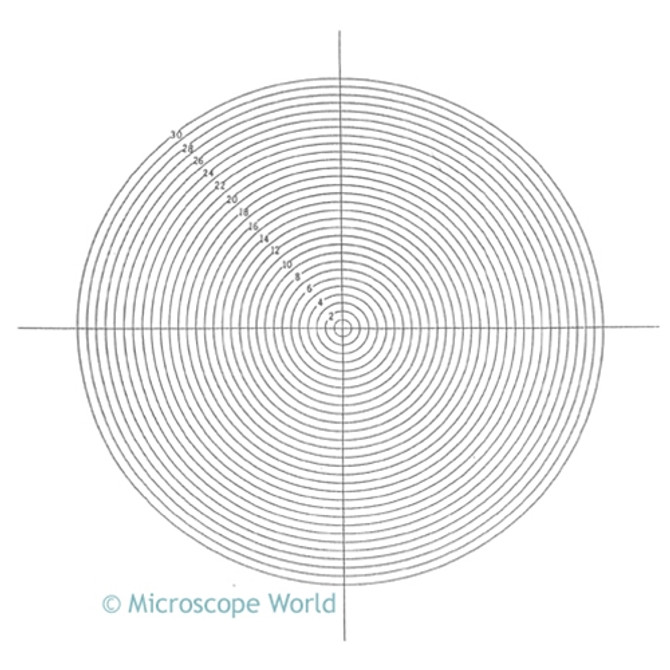

KR-504 Concentric circles reticle (30 circles) with diameters equal 0.010" through 0.300" with crossline. Numbered 2, 4, 6.....30 every 2nd line. Learn how to m…

Read more
SKU: KR504
Measurement: Inches
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

KR-504 Concentric circles reticle (30 circles) with diameters equal 0.010" through 0.300" with crossline. Numbered 2, 4, 6.....30 every 2nd line. Learn how to make accurate measurements when using your reticle here and learn about calibrating your microscope here. Reticle is available in a number of different diameters, select below when ordering.


  • Diameters: 0.010" - 0.300"
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Tolerances: Unless otherwise stated +/-0.0002" (+/-5 microns)
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.



NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
