Reticle 10 Concentric Circles 2mm - 20mm
Reticle 10 Concentric Circles 2mm - 20mm
Reticle 10 Concentric Circles 2mm - 20mm

Reticle 10 Concentric Circles 2mm - 20mm

No reviews yet Write a Review

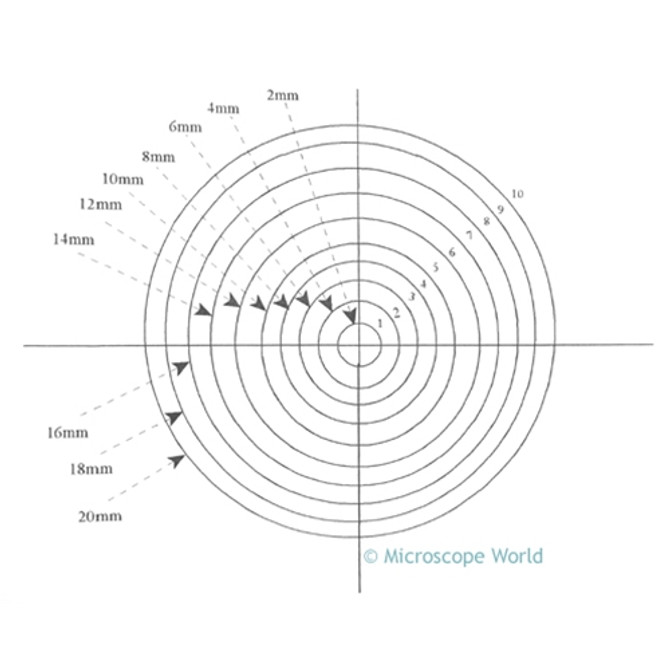

KR-505 Concentric circles reticle (10 circles) with diameters equal 2mm through 20mm with crossline. Numbered 1-10. Learn how to make accurate measurements when…

Read more
SKU: KR505
Measurement: Metric
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

KR-505 Concentric circles reticle (10 circles) with diameters equal 2mm through 20mm with crossline. Numbered 1-10. Learn how to make accurate measurements when using your reticle here and learn about calibrating your microscope here. Reticle is available in a number of different diameters, select below when ordering.


  • Diameters: 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Tolerances: Unless otherwise stated +/-0.0002" (+/-5 microns)
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.



NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
