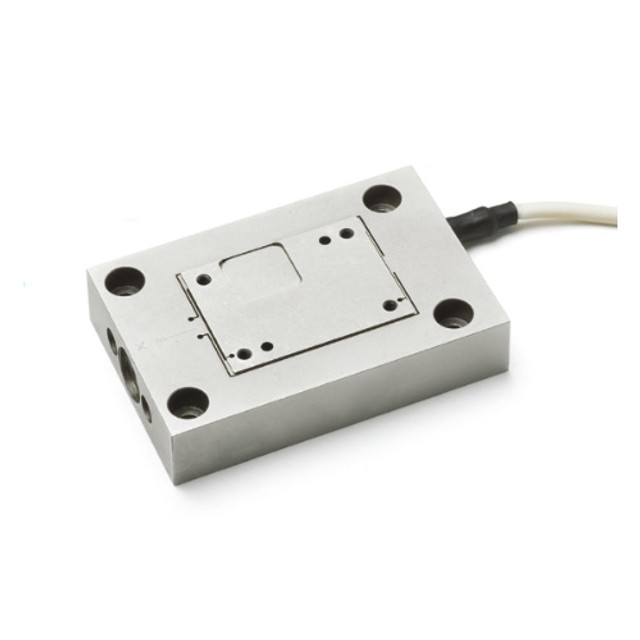

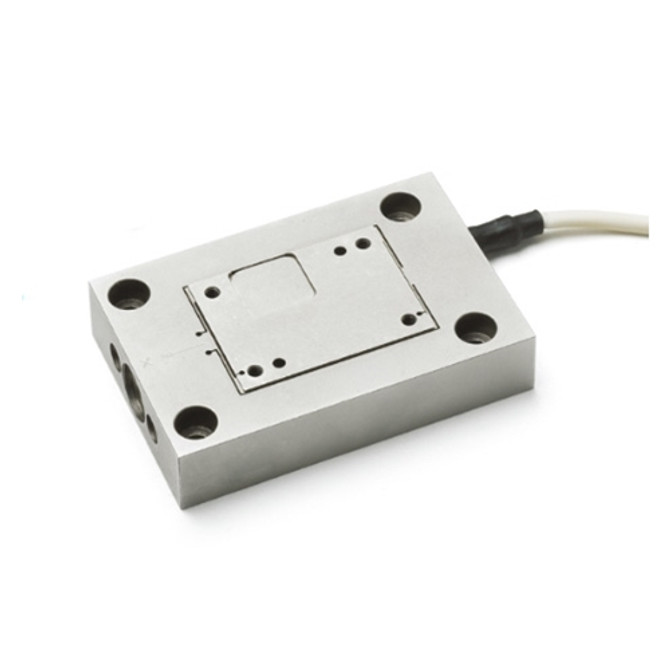

This single axis Nanopositioning stage has one linear axis of motion and is intended primarily for horizontal motion. However, the stage will function in other orientations. The capacitive sensor design provides sub-nanometer displacement measurement and closed-loop feedback over a range in excess of 15µm. The millisecond response time and high bandwith make this stage ideal for high-throughput applications. The stage system does not include a controller.
Applications for the NPS-X-15A Nanopositioning stage include atomic force microscopy (AFM), magneto-resistive head and disk drive testing, interferometry, and metrology.
The Nanopostion Stage NPS-X-15A is made to order and the exact specifications of your stage will be provided when you receive it. Typical specifications are as follows:
- Stage Material: Stainless steel
- Open Loop Range: ± 10.5 µm (varies with each stage)
- Closed Loop Range: ± 8 µm, typical with a minimum of ± 7.5µm (varies with each stage)
- Scale factor error (1σ): 0.1% (varies with each stage)
- Resonant frequency: at 0g load: 3500 Hz is typical, with a minimum of 3000 Hz (varies with each stage); at 50g load: 2500 Hz; at 200g load: 1500 Hz
- Maximum load: 3 kg for gravity acting in the Z direction
- Size: 60mm L x 40mm W x 13.5mm H
- Recommended Controller: NPC-D-6110
View the QGNPS-X-15A Datasheet
NOTE: This item is not returnable.
Prior Part # QGNPS-X-15A
