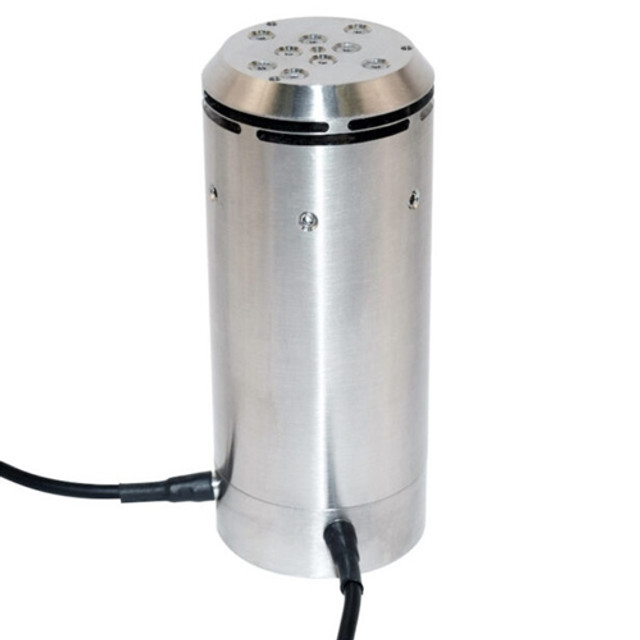

The Nanopositioning Tip Tilt Stage NPS-TG-7A is designed to be used in applications requiring high speed, ultra-high precision positioning of mirrors in optical inspection, imaging systems, and laser pointing devices. A suitable mirror is fixed onto the Tip Tilt platform of the stage to provide greater than 7 milliradians of travel with sub micro-radian resolution. The system includes the NanoScan NPC-D-6330 Controller.
Applications for the NPS-TG-7A Fast Tip Tilt Mirror Steering stage include laser scanning, laser beam stabilization, scanning microscopy, and image processing and stabilization.
The Nanopostion Stage NPS-TG-7A is made to order and the exact specifications of your stage will be provided when you receive it. Typical specifications are as follows:
- Material: Invar 36
- Closed Loop Range: 7 mradians (mrad)
- Open Loop Range: 7.7 mrad minimum, 8.8 mrad typical
- Scale factor error (1σ): Typical: 0.002%, specified: 0.1%
- Resonant frequency (for all stages): at 0g load: 2600 Hz, at 15g load 2300 Hz
- Distance of pivot point to platform surface: 7mm
- Size: 95mm high, 40mm in diameter

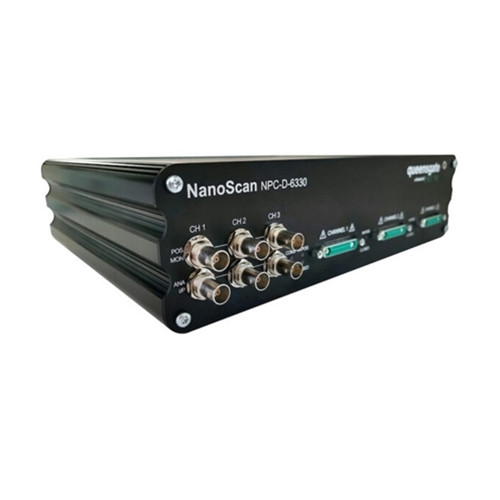

The NPC-D-6330 Controller is a 3-axis, 20 bit controller and has the following specifications:
- Interfacing: Analog command input and position output for compatibility with existing systems. Digital commands over USB for maximum accuracy with a DLL interface for customer software.
- Cooling: Convection cooled with temperature controlled fans
- Compatibility: Queensgate Nanobench, Micro-Manager, Metamorph, Elements via RS232C and other software using DLL interface.
- Controller Box Dimensions: 318mm x 240mm x 90mm
- Weight: 3kg
View the Nanopositioning Tip Tilt Stage NPS-TG-7A Datasheet
View the Prior Scientific NanoScan NPC-D-6000 Series Controller Datasheet.
System includes 2m cable.
NOTE: This item is not returnable.
Prior Part # QGNPS-TG-7A-D3, QGNPS-TG-7A, QGNPC-D-6330
