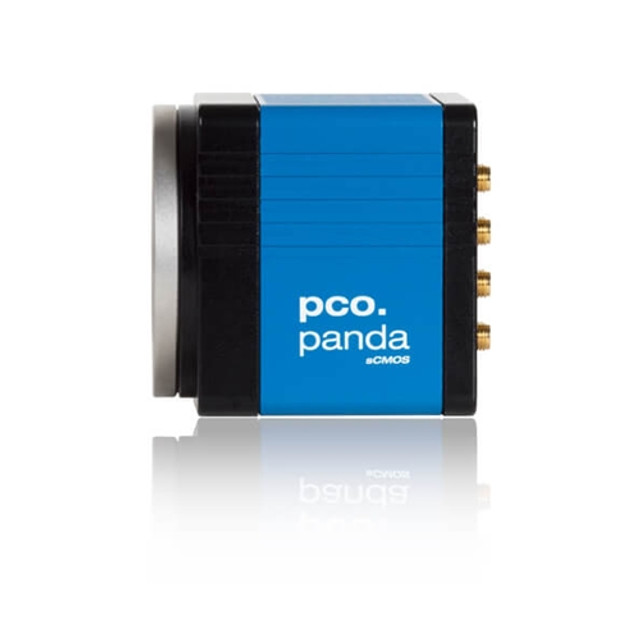

pco.panda 4.2 Microscope Camera
The pco.panda 4.2 microscope camera combines revolutionary sCMOS technology in a compact design. High quantum efficiency and low readout noise make this camera suitable for countless applications...
pco pixelfly 1.3 SWIR Microscope Camera
The pco.pixelfly camera is a high performance machine vision camera which has a special InGaAs image sensor. This sensor is sensitive to the shortwave infrared,…
SKU:
pixelfly
The pco.pixelfly camera is a high performance machine vision camera which has a special InGaAs image sensor. This sensor is sensitive to the shortwave infrared, near infrared, and visible range of the electromagnetic spectrum.
Camera Specifications:
- Sensor: InGaAs
- Data Interface: USB 3.1 Gen 1
- Spectral range: 400 to 1700 nm
- Resolution: 1280 x 1024 pixels
- Pixel Size: 5µm x 5µm
- Sensor Diagonal: 8.2mm
- Shutter Type: GS (Global Shutter)
- Frame Rate: 71.5 frames per second @ full resolution
- Maximum Dynamic Range: 680:1
- Sensor cooling: peltier with forced air
- Quantum Efficiency: 90%
- Size / Weight: 70mm x 70mm x 115mm
- View pco.pixelfly 1.3 SWIR data sheet.
NOTE: This camera is not returnable.
Description
The pco.pixelfly camera is a high performance machine vision camera which has a special InGaAs image sensor. This sensor is sensitive to the shortwave infrared, near infrared, and visible range of the electromagnetic spectrum.
Camera Specifications:
- Sensor: InGaAs
- Data Interface: USB 3.1 Gen 1
- Spectral range: 400 to 1700 nm
- Resolution: 1280 x 1024 pixels
- Pixel Size: 5µm x 5µm
- Sensor Diagonal: 8.2mm
- Shutter Type: GS (Global Shutter)
- Frame Rate: 71.5 frames per second @ full resolution
- Maximum Dynamic Range: 680:1
- Sensor cooling: peltier with forced air
- Quantum Efficiency: 90%
- Size / Weight: 70mm x 70mm x 115mm
- View pco.pixelfly 1.3 SWIR data sheet.
NOTE: This camera is not returnable.
