pco.panda 26 DS Microscope Camera
The pco.panda 26 DS is an ultra compact sCMOS sensor camera with a double global shutter ideal for particle image velocimetry (PIV) applications. The true charge domain global shutter allowings low...

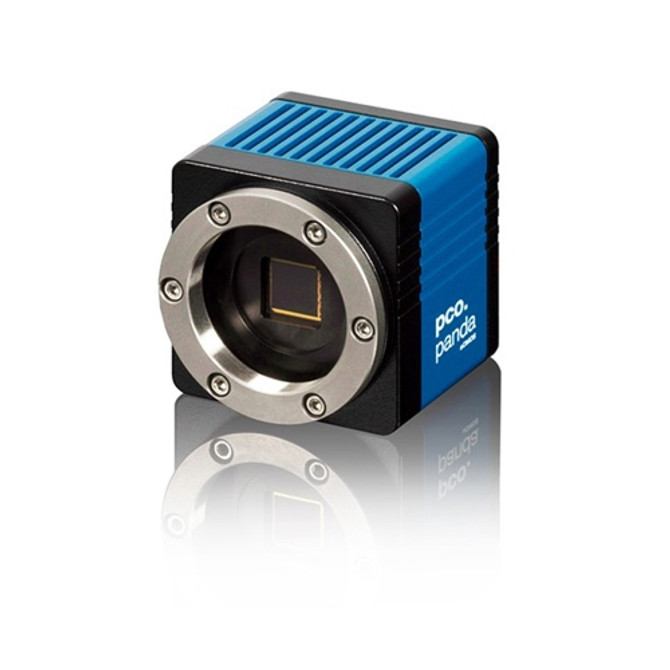

pco.panda 26 Microscope Camera
The pco.panda 26 camera is an ultra compact camera with a back illuminated sCMOS sensor available in monochrome or color options that are needed for a wide rang…
SKU:
panda26.usb
Contact Microscope World at 800-942-0528 for pricing.
The pco.panda 26 camera is an ultra compact camera with a back illuminated sCMOS sensor available in monochrome or color options that are needed for a wide range of microscopy applications. The camera features a true charge domain global shutter allowing low readout noise and dark current to be achieved. The USB 3.1 connection eliminates the need for an external power supply which allows for fast data transfer.
Please contact Microscope World for a quote or further information on the pco.panda 26 camera.
Camera Specifications:
- Sensor: sCMOS (scientific CMOS)
- Resolution: 5120 x 5120 pixels
- Pixel Size: 2.5 x 2.5µm
- Sensor Format / Diagonal: 12.8mm x 12.8mm / 18.1mm
- Shutter Mode: True charge domain global shutter
- Frame Rate: 6 fps @ full resolution, 30fps @ 5120 x 1024
- Exposure / Shutter Time: 27µs...20s
- Dynamic Range A/D: 12 bit
- Cooling Method: Passive Cooling
- Dynamic Range: 66dB
- Quantum Efficiency: up to 65%
- Size / Weight: 65mm x 65mm x 72mm, 600g
- Available in monochrome or color
- EMVA Standard 1288 Compliant
- View pco.panda 26 data sheet.
NOTE: This camera is not returnable.
Description
The pco.panda 26 camera is an ultra compact camera with a back illuminated sCMOS sensor available in monochrome or color options that are needed for a wide range of microscopy applications. The camera features a true charge domain global shutter allowing low readout noise and dark current to be achieved. The USB 3.1 connection eliminates the need for an external power supply which allows for fast data transfer.
Please contact Microscope World for a quote or further information on the pco.panda 26 camera.
Camera Specifications:
- Sensor: sCMOS (scientific CMOS)
- Resolution: 5120 x 5120 pixels
- Pixel Size: 2.5 x 2.5µm
- Sensor Format / Diagonal: 12.8mm x 12.8mm / 18.1mm
- Shutter Mode: True charge domain global shutter
- Frame Rate: 6 fps @ full resolution, 30fps @ 5120 x 1024
- Exposure / Shutter Time: 27µs...20s
- Dynamic Range A/D: 12 bit
- Cooling Method: Passive Cooling
- Dynamic Range: 66dB
- Quantum Efficiency: up to 65%
- Size / Weight: 65mm x 65mm x 72mm, 600g
- Available in monochrome or color
- EMVA Standard 1288 Compliant
- View pco.panda 26 data sheet.
NOTE: This camera is not returnable.
