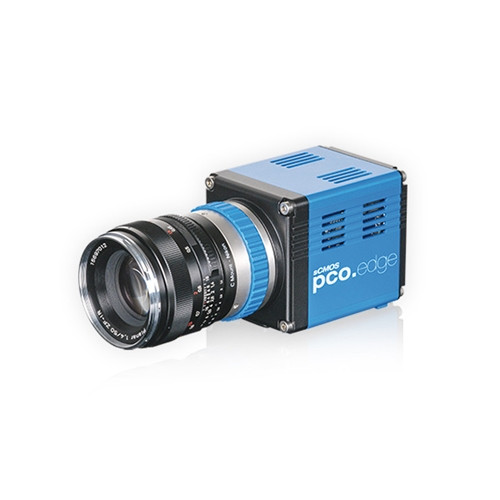

pco.edge 4.2 LT Microscope Camera

The pco.edge 4.2 LT camera is equipped with an innovative scientific CMOS sensor (sCMOS) providing crisp images and precise measurements. The pco.edge 4.2 LT camera system is designed for users who require the highest quantum efficiency. The monochrome camera has 16 bit dynamic range, long exposure times and extremely low noise readout.

Please contact Microscope World for a quote or further information on the pco.edge 4.2 LT camera.

Camera Specifications:

• Sensor: sCMOS (scientific CMOS), monochrome

• Resolution: 2048 x 2048 pixels
• Pixel Size: 6.5 x 6.5µm

• Sensor Format / Diagonal: 13.3mm x 13.3mm / 18.8mm
• Shutter Mode: Rolling shutter (RS) with free selectable readout modes, global reset - rolling readout (GR)

• Frame Rate: 40 fps @ full resolution, 80 fps @ 1280 x 1024, 170fps @ 640 x 480

• Exposure / Shutter Time: 100µs...10s RS, 30µs...2s GR

• Dynamic Range A/D: 16 bit
• Cooling Method: +10ºC stabilized, peltier with forced air (fan) (up to 27ºC ambient)

• Dynamic Range: 37,500:1 (91.5dB)
• Quantum Efficiency:  up to 82% @ peak

• Size / Weight: 99.5mm x 76mm x 70mm, 900g
• Data interface: USB 3.0

• EMVA Standard 1288 Compliant
• View pco.edge 4.2 LT data sheet.

NOTE: This camera is not returnable.
