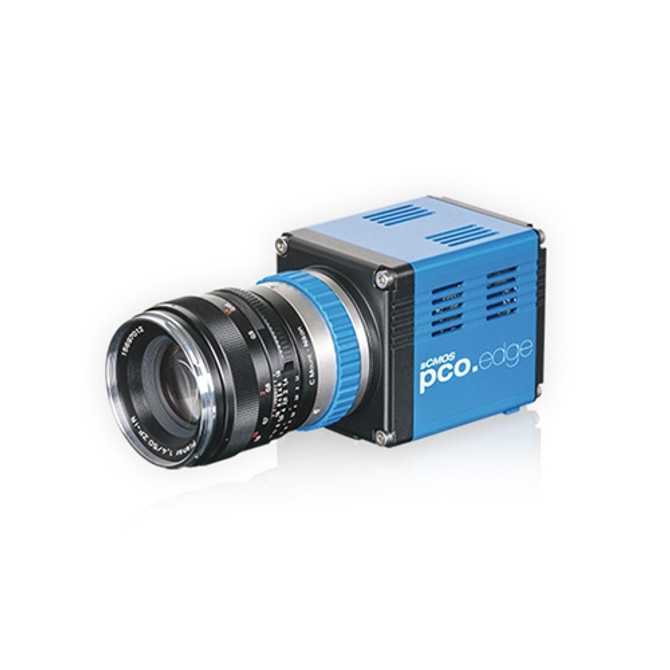

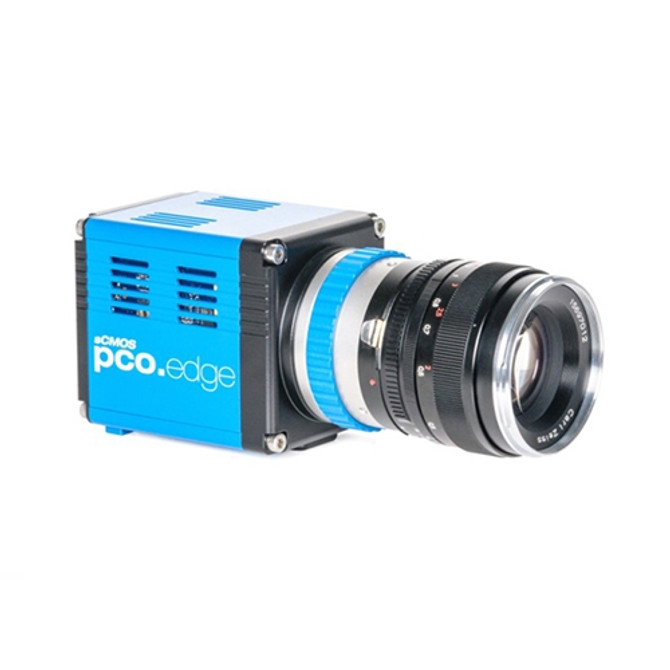

pco.edge 3.1 Microscope Camera

The pco.edge 3.1 camera is equipped with an innovative scientific CMOS sensor (sCMOS) providing crisp images and precise measurements. The pco.edge 3.1 camera system is designed for users who require high resolution, high frame rates, 16 bit dynamic range, good quantum efficiency, selectable shutter options or an optional color sensor.

Please contact Microscope World for a quote or further information on the pco.edge 3.1 camera.

Camera Specifications:

• Sensor: sCMOS (scientific CMOS), monochrome

• Resolution: 2048 x 1536 pixels
• Pixel Size: 6.5 x 6.5µm

• Sensor Format / Diagonal: 13.3mm x 10.0mm / 16.6mm
• Shutter Mode: Rolling shutter with free selectable readout modes, global/snapshot shutter (GS), global reset - rolling readout (GR)

• Frame Rate: 50 fps @ full resolution, 75 fps @ 1280 x 1024, 160fps @ 640 x 480

• Exposure / Shutter Time: 500µs...2s RS, 20µs...100ms GS, 30µs...2s GR

• Dynamic Range A/D: 16 bit
• Cooling Method: +5ºC stabilized, peltier with forced air (fan) (up to 27ºC ambient)

• Dynamic Range: 27,000:1 (88.6dB)
• Quantum Efficiency: >60% @ peak

• Size / Weight: 99.5mm x 76mm x 70mm, 900g
• Data Interface: USB3.0

• EMVA Standard 1288 Compliant
• View pco.edge 3.1 data sheet.

NOTE: This camera is not returnable.
