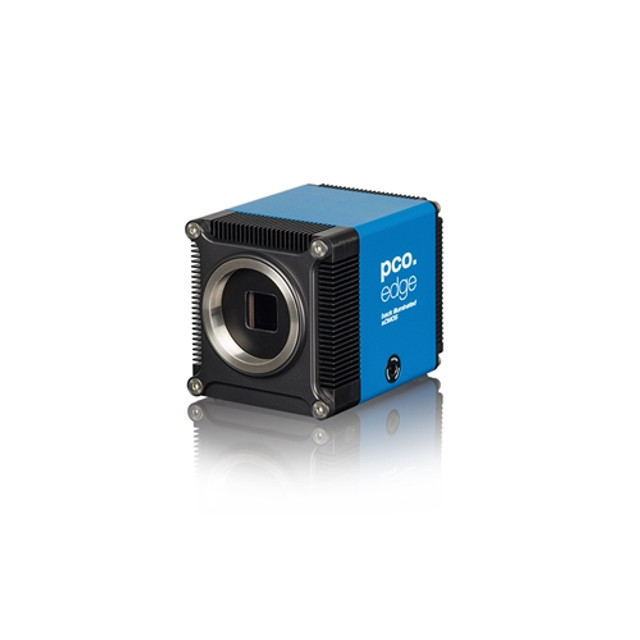

pco.edge 4.2 bi UV Microscope Camera
The pco.edge 4.2 bi UV camera achieves high quantum efficiency in the ultraviolet wavelength and has a spectral range of 190nm to 1100nm. It has a back illuminated sCMOS sensor that makes it perfect...
pco.edge 10 bi CLHS Microscope Camera
The pco.edge 10 bi CLHS camera's back illuminated image sensor provides quantum efficiency of up to 85% with broad spectrum out to NIR. With thermal stabilizati…
SKU:
edge10.bi
The pco.edge 10 bi CLHS camera's back illuminated image sensor provides quantum efficiency of up to 85% with broad spectrum out to NIR. With thermal stabilization and active cooling of the sensor, extremely low dark current and a readout noise of 0.8 electrons are achieved.
Please contact Microscope World for a quote or further information on the pco.edge 10 bi CLHS camera.
Camera Specifications:
- Sensor: Back illuminated scientific CMOS (bi sCMOS), monochrome.
- Interface: CLHS FOL
- Resolution: 4432 x 2368 pixels
- Pixel Size: 4.6 x 4.6µm
- Shutter Mode: Rolling shutter
- Frame Rate: 120 fps @ full resolution
- Max pixel Rate: 1467
- Peak Quantum Efficiency: 85%
- Cooling Method: Active cooling air & water
- Max Dynamic Range: 25,000 : 1
- Size / Weight: 95mm x 90mm x 109mm
- EMVA Standard 1288 Compliant
- View pco.edge 10 bi CLHS data sheet.
NOTE: This camera is not returnable.
Description
The pco.edge 10 bi CLHS camera's back illuminated image sensor provides quantum efficiency of up to 85% with broad spectrum out to NIR. With thermal stabilization and active cooling of the sensor, extremely low dark current and a readout noise of 0.8 electrons are achieved.
Please contact Microscope World for a quote or further information on the pco.edge 10 bi CLHS camera.
Camera Specifications:
- Sensor: Back illuminated scientific CMOS (bi sCMOS), monochrome.
- Interface: CLHS FOL
- Resolution: 4432 x 2368 pixels
- Pixel Size: 4.6 x 4.6µm
- Shutter Mode: Rolling shutter
- Frame Rate: 120 fps @ full resolution
- Max pixel Rate: 1467
- Peak Quantum Efficiency: 85%
- Cooling Method: Active cooling air & water
- Max Dynamic Range: 25,000 : 1
- Size / Weight: 95mm x 90mm x 109mm
- EMVA Standard 1288 Compliant
- View pco.edge 10 bi CLHS data sheet.
NOTE: This camera is not returnable.
