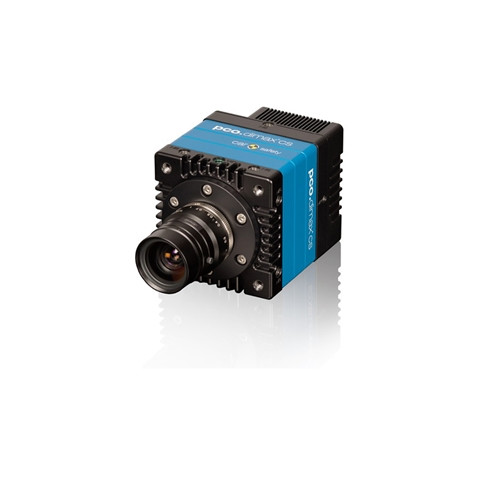

pco.dimax cs4 Microscope Camera
The pco.dimax cs4 camera has a compact and rugged design to withstand harsh and demanding applications. Its excellent light sensitivity results in high quality …
SKU:
dimaxcs4
The pco.dimax cs4 camera has a compact and rugged design to withstand harsh and demanding applications. Its excellent light sensitivity results in high quality images ideal for analysis and measurements. The pco.dimax cs4 provides up to 1102 fps with a 2016 x 2016 resolution and features a HD-SDI video output.
Please contact Microscope World for a quote or further information on the pco.dimax cs4 camera.
Camera Specifications:
- Sensor: Proprietary sensor design
- Resolution: 2016 x 2016 pixels
- Pixel Size: 11 x 11µm
- Sensor Format / Diagonal: 22.18mm x 22.18mm / 31.36mm
- Shutter Mode: Global shutter
- Frame Rate: 1102 fps @ full resolution, 1443fps @ 2016 x 1536
- Exposure / Shutter Time: 1.5µs...40s
- Dynamic Range A/D: 12 bit
- Dynamic Range: 66dB
- Quantum Efficiency: up to 50%
- Size / Weight: 85mm x 85mm x 102.5mm, 0.985 kgs
- View pco.dimax cs4 data sheet.
NOTE: This camera is not returnable.
Description
The pco.dimax cs4 camera has a compact and rugged design to withstand harsh and demanding applications. Its excellent light sensitivity results in high quality images ideal for analysis and measurements. The pco.dimax cs4 provides up to 1102 fps with a 2016 x 2016 resolution and features a HD-SDI video output.
Please contact Microscope World for a quote or further information on the pco.dimax cs4 camera.
Camera Specifications:
- Sensor: Proprietary sensor design
- Resolution: 2016 x 2016 pixels
- Pixel Size: 11 x 11µm
- Sensor Format / Diagonal: 22.18mm x 22.18mm / 31.36mm
- Shutter Mode: Global shutter
- Frame Rate: 1102 fps @ full resolution, 1443fps @ 2016 x 1536
- Exposure / Shutter Time: 1.5µs...40s
- Dynamic Range A/D: 12 bit
- Dynamic Range: 66dB
- Quantum Efficiency: up to 50%
- Size / Weight: 85mm x 85mm x 102.5mm, 0.985 kgs
- View pco.dimax cs4 data sheet.
NOTE: This camera is not returnable.
