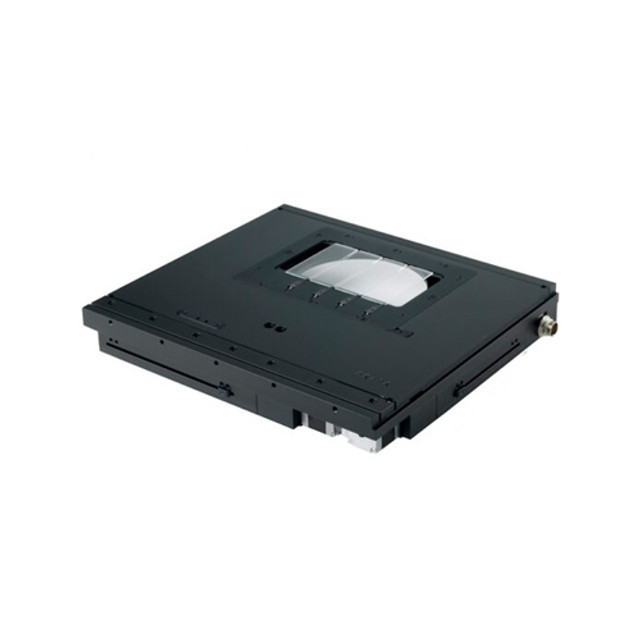

Olympux BX63 Microscope Motorized Flat Top Stage 40nm Resolution

The Prior Scientific H101F flat top motorized stage for Olympus BX63 upright microscopes has a design that provides unlimited obstruction free space for objective and nosepiece rotation. Ultra low profile sample holders facilitate the use of high NA objectives / condensers while the latest in miniature high torque motors facilitate access to the condenser and other microscope adjustments. Optional embedded high resolution XY encoders provide the highest precision available. Intelligent Scanning Technology (IST) allows each stage to be pre-programmed with a unique set of operating characteristics particular to that stage to ensure optimum performance and allows the ProScan III controller to make any required adjustments to maintain superior orthogonally and metric accuracy.

Flat Top Motorized Stage Specifications:

• Travel: 114mm x 75mm XY travel (4" x 3")
• Motor Type: Stepper (Optional 0.1µm Linear Encoded - select when ordering)
• Resolution: 40nm (2mm screw pitch)
• XY Repeatability: ±0.7(0.2)µm
• Minimum Step Size: 0.04µm
• Metric Accuracy (per mm of travel): 0.2µm (Requires use of ProScan III Controller)
• Maximum Velocity: 40mm/second
• For Use With: Olympus BX63 Microscopes (Post Mount)
• Weight: 5 kg (11 lbs)
• Max Load Capacity: 10 kg (22 lbs)
• Warranty: 5 Years

View the Flat Top H101F Motorized Stage Brochure

NOTE: This item is not returnable.

Prior Scientific Part #s H101N2B3, H101E2B3.
