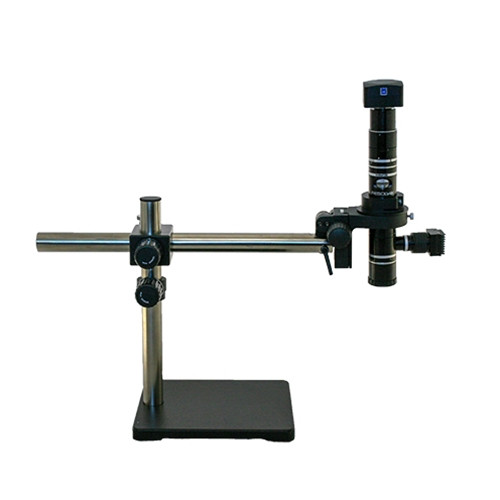

Navitar High Resolution Digital Visual Inspection System
Navitar High Resolution Digital Visual Inspection System
Navitar High Resolution Digital Visual Inspection System

Navitar High Resolution Digital Visual Inspection System

No reviews yet Write a Review
Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x. Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens. Focusing: Rac…

Read more
SKU:
$11,775.00 - $12,075.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description
  • Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x.
  • Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens.
  • Focusing: Rack and pinion coarse focusing with an industrial pin mount.
  • Stand: Boom stand base is 11.4" x 10.2" x 1.1".  Maximum distance from vertical post to the end of the base is 8.9". Vertical post is 15.1" tall. An extension post can be added.
  • Magnification: If a 22" monitor is used magnification is 22x - 158x.
  • Field of View: 18mm - 3mm
  • Resolution: 3.5µm
  • Working Distance: 90mm
  • Illumination: Coaxial LED illumination.
  • Computer & Monitor: Computer system and monitor are not included.
  • Camera: Your choice of back-illuminated sensor USB3 camera. Select megapixels when ordering:
    • 6.3 Megapixels
    • 12 Megapixels
  • Software: Includes image management software, image capture, video capture, measurement (PC only), extended depth of focus.
  • Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer is available for purchase separately.
  • Warranty: Navitar Resolv4K lens has a lifetime limited warranty. Camera has a 1-year warranty.
