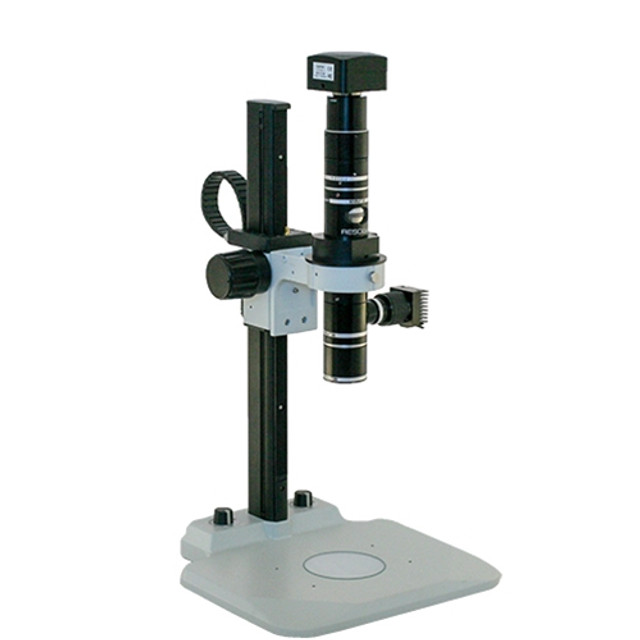

Navitar High Resolution Digital Image Analysis Filter Patch System

Navitar High Resolution Digital Image Analysis Filter Patch System

No reviews yet Write a Review

Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x options: 1x With Plan APO ELWD 5x Objective With Plan APO ELWD 10x Objective Camera Mount: Includes…

SKU:

$19,309.00 - $20,625.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

Navitar Resolve 4K Lens: Magnification range 0.64x - 4.5x options:
- 1x
- With Plan APO ELWD 5x Objective
- With Plan APO ELWD 10x Objective
Camera Mount: Includes c-mount adapter to mount camera directly to the macro zoom lens.
Focusing: Coaxial coarse and fine focusing, focus distance 375mm. Fine focus distance of 0.56mm per rotation. Focus knob tightness adjustable.
Stand: Track stand with LED illuminated base, coarse and fine focusing. 90~240V. Track is 520mm tall. Base is 320 x 316 x 21mm.
Specimen Stage: Includes black and white stage plate and glass stage plate (95mm diameter).
Magnification: See magnification chart below, depends on lens selected and size of monitor used.
Illumination: Transmitted LED illumination. Coaxial LED illumination.
Computer & Monitor: Computer system and monitor are not included.
Camera4.2 megapixel color microscopy camera with USB3 connection. 1" CMOSIS color sensor provides image resolution at 2048 x 2048 with live preview frame rate of 90fps @ 2048 x 2048.
Software: Includes basic capture and measurement software as well as image analysis software for particle count and sizing, porosity, grainsize calculation and plating and coating thickness analysis and flake size classification. Learn more about the software features below:
Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer can be ordered separately.
Computer Requirements
- Windows 7, 8, 10
- Processor: Dual Core Processor or greater (Intel or ADM)
- Memory: 2 GB RAM
- Hard Disk: 160GB hard drive space
- VGA: 24-bit or 32-bit true color capability
- USB 3.0
Warranty: Navitar Resolv4K lens has a lifetime limited warranty. Camera has a 1-year warranty.

Resolution	Lens	Working Distance	FOV	22" Monitor Magnification
3.5µm	1x	90mm	18 - 2.6mm	22x - 158x
2µm	Plan APO ELWD 5x	34mm	6.40 - 1.04mm	112x - 788x
1µm	Plan APO ELWD 10x	33.5mm	3.20 - 0.52mm	224x - 1576x
