National Optical 440T Digital Stereo Zoom Microscope on LED Stand

This National Optical digital stereo microscope provides 7x - 45x magnification and is designed for industrial and educational use. Select from a 5 mp or an 8 mp digital camera when ordering.

• Head: Trinocular body includes camera adapter. Viewing head rotates 360º.
• Objective Lenses: Zoom range of 0.7x - 4.5x.
• Eyepieces: Paired 10x widefield eyepieces are 45º inclined with dual diopter adjustments. Interpupillary adjustment from 55mm to 75mm. Accepts 23mm eyepiece reticle.
• Magnification: 7x - 45x. Optional auxiliary lenses or substitute eyepieces, which are available for purchase separately, can provide additional magnification.
• Specimen Stage: Two 80 mm stage plates are included: one frosted glass and one is a reversible black/ white plastic contrast.
• Stand: All metal frame. Heavy-duty post mount with locking collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage. Stage has locked-on stage clips and a blue filter for transmitted light.
• Focusing: Large dual focusing knobs have a slip clutch to prevent damage, and tension adjustment eliminates focus drift. Dual light controls can provide top only, bottom only, or dual illumination.
• Illumination: Top and bottom lights are 3W LED. The top light has a directional beam and rheostat control.
• Camera (select when ordering): Choose from the following camera options:

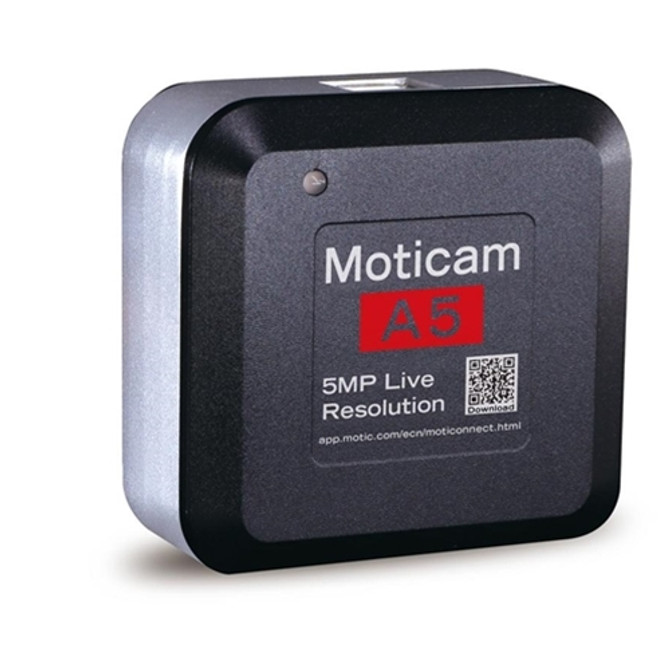

  • Moticam A5 is a 5 mp digital camera. Read the full description of the Moticam A5 here.
  • Moticam 4000 camera is an 8 megapixel digital camera. Read the full description of the Moticam 4000 here.
• Size: Height: 340mm (13.4 in) up to 433 (17 in), Base width: 171mm (6.8 in), Base depth: 242mm (9.5 in)
• Weight: 5.4 kg (16 lbs)
• Warranty: Lifetime limited warranty.
• Working Distance: 110mm

National Optical DC20-440T-440PLL, DC40-440T-440PLL
