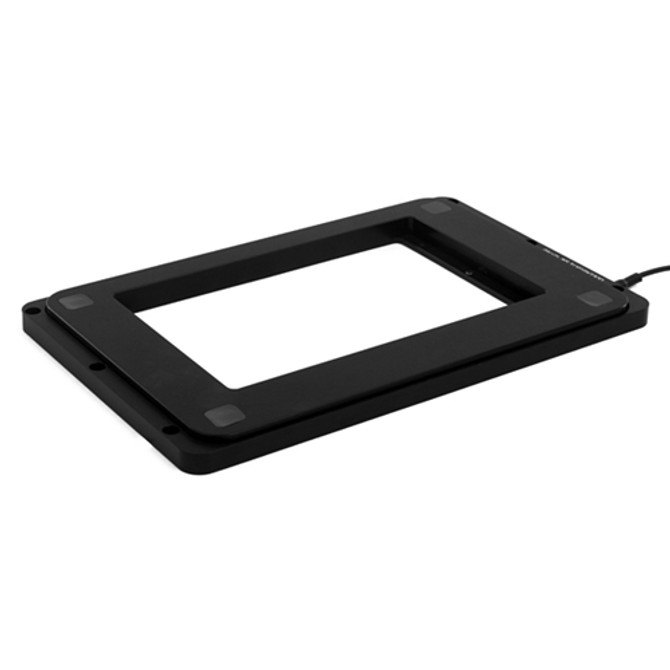

NanoScan SP Z Series Nanopositioning Piezo Sample Scanner

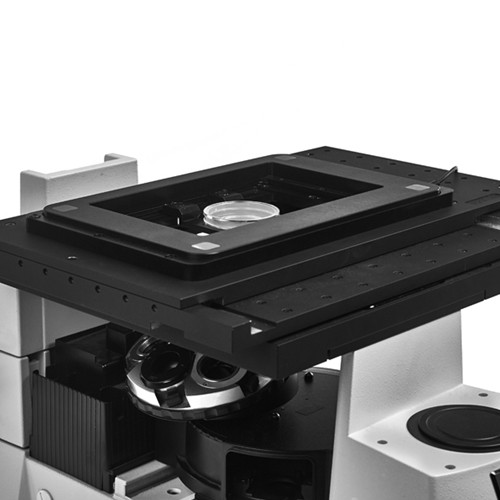

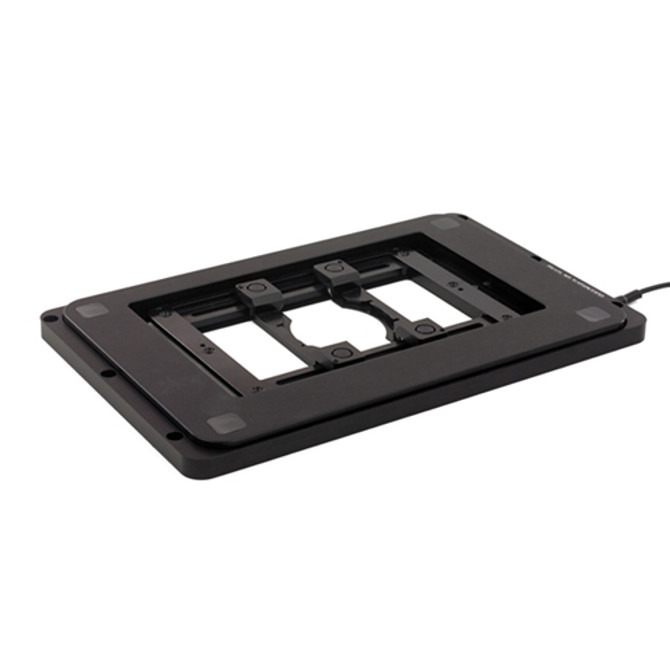

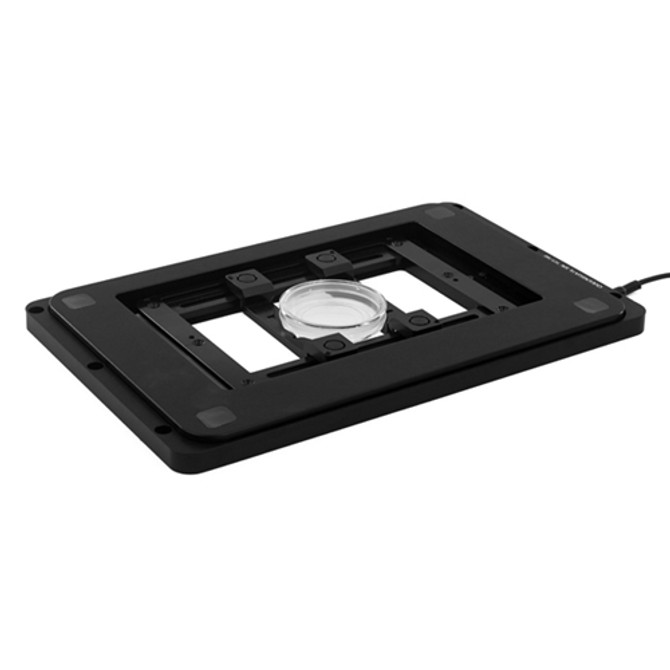

The NanoScan SP piezo driven stages deliver the best positioning performance and fastest recovery between z-stacks. The SP-stages are compatible with Prior Scientific's motorized stages and most brands of microscopes when using appropriate adapter plates. Accessory insert plates are available including microtiter well plates, slide holder, and petri dish holders. This NanoScan SP system contains a NanoScan SP piezo sample scanner and NPC-D-6110 controller.

Applications for the NanoScan SP Nanopositioning Piezo Sample Scanner include optical sectioning producing 3D images, live cell imaging, autofocus systems for time lapse imaging, high contrast screening, surface analysis, and wafer inspection.

NanoScan SP Nanopositioning Piezo Sample Scanner Specifications:

• Closed Loop Range: 200µm, 400µm, 600µm, 800µm (select when ordering)
• Open Loop Range: SP200 = 235µm, SP400 = 490µm, SP600 = 730µm, SP800 = 970µm
• Resolution: SP200 = 0.5µm, SP400 = 0.7µm, SP600 = 0.7µm, SP800 = 1.2µm
• Linearity: 0.2%
• Repeatability: 3nm
• 5% Settle 2µm Step w/ 200g: SP200 = 7.5ms, SP400 = 8ms, SP600 = 9ms, SP800 = 10ms
• 0.5% Settle 100µm Step w/ 200g: SP200 = 21ms, SP400 = 23ms, SP600 = 24ms, SP800 = 35ms
• Internal Dimensions: 179mm L x 110mm W
• External Dimensions: 260mm L x 164mm W x 13.7mm H (SP800 is 14mm H)
• Weight: 714g (1.57 lbs)

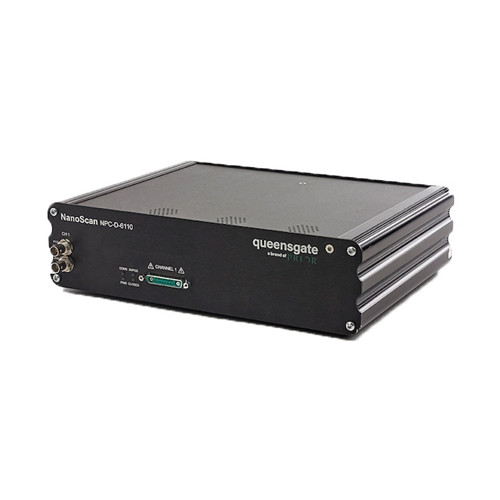

NPC-D-6110 Controller Specifications:

• Interfacing: Analog command input and position output for compatibility with existing systems. Digital commands over USB for maximum accuracy with a DLL interface for customer software.
• Cooling: Convection cooled, temp controlled fans
• Compatibility: Queensgate Nanobench, Micro-Manager, Metamorph, Elements via RS232C and other software using DLL interface. Can be connected to Prior ProScan III for integrated fine z-control.
• Controller Box Dimensions: 318mm x 240mm x 90mm
• Weight: 3kg

View the NanoScan SP200/SP400/SP600/SP800 Nanopositioning Piezo Sample Scanner Datasheet

NOTE: This item is not returnable.

Prior Part # QGSP200-D1, QGSP400-D1, QGSP600-D1, QGSP800-D1.
