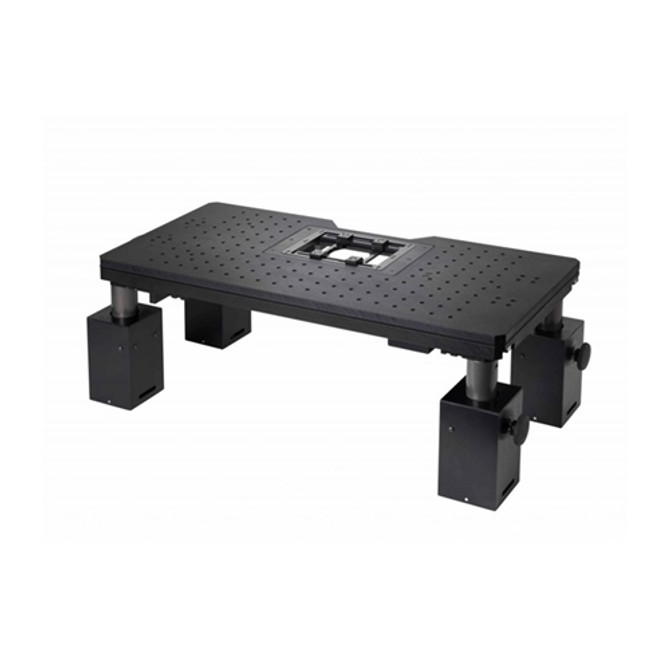

This Prior Scientific Z deck electrophysiology platform with XY stepper motor stage is designed for electrophysiology applications. The motorized Z deck provides users with an ultra-stable platform that allows full access for micromanipulators and stereotaxic instruments. Height is quickly and easily adjusted for use with different sample sizes from thin samples to whole animal imaging. The large stage top plate has a breadboard pattern for mounting experiment accessories and an aperture compatible with a wide range of sample holders.
Large sample area for mounting heating, cooling, perfusion, or incubation chambers. Pneumatic piston towers make raising and lowering the Z Deck virtually effortless.
Motorized Z Deck Specifications:
- Microscope Compatibility: Evident BX51WI, BX61WI
- Z Deck Travel: 57mm
- Vibration Table Compatibility: 1/4-20 or 6mm
- XY Travel: 65mm x 65mm
- XY Resolution: 40nm
- XY Speed: 15mm/s
- XY Stage Scales: none or 0.1µm resolution linear (Select when ordering).
- Includes: ProScan controller, joystick, motorized ProScan XY stage, and 2 sample holders: universal and solid insert plate. Additional inserts sold separately.
- Spacers Provided: condenser spacer, 4 pillar spacers, 4 x 1" spacers
- ProScan Controller Power: Universal external power supply, input 100~240v, 50/60Hz.
- ProScan Computer Interface: RS232/USB
- ProScan Communication Protocol: 8 bit word, 1 stop bit, no parity, no handshake
View the Motorized ZDeck Quick Adjust Platform Datasheet.
NOTE: This item is not returnable.
Prior Scientific part #: ZDP12MN, ZDP12ME
