Motic Panthera TEC POL Polarizing Microscope

This polarizing microscope is available in binocular or trinocular and has the following specifications:

• Microscope Head: Binocular or Trinocular Siedentopf head with eyetubes inclined at 25º with interpupillary adjustment from 48mm to 75mm. Trinocular version features a beam-splitter with 50/50 light split. 50% of the light going to the trinocular tube and 50% going to the eyetubes. Comes standard with widefield 10x eyepieces with diopters on each, one including a cross-hair reticle.
• Microscope Body: Intermediate tube contains a 360° rotatable analyzer, compensator slot and Bertrand lens. The analyzer has a large rotation dial for easy adjustment and accurate reading during rotation. The Bertrand lens is focusable and centerable for the best conoscopic observations.
• Objective Lenses: Reversed quintuple nosepiece encoded accommodates up to five strain-free polarizing objectives. Microscope comes with color corrected infinity system Strain-Free UC Plan objectives. The strain-free objectives provide improved polarizing performance.
  • UC Plan Strain-Free 4x, NA 0.1; WD = 30.5mm
  • UC Plan Strain-Free 10x, NA 0.25; WD = 17.4mm
  • UC Plan Strain-Free 40x, NA 0.65; WD = 0.6mm
  • UC Plan Strain-Free 60x, NA 0.80; WD = 0.35mm
• Stage: Lockable, rotating ball-bearing stage rotates 360° for precise movement with vernier scale of 0.1mm increments.
• Focusing: Low position coaxial coarse and fine focusing with safety rack stop and graduations of 2µm . A Focusing stroke of 25mm and tension adjustment.

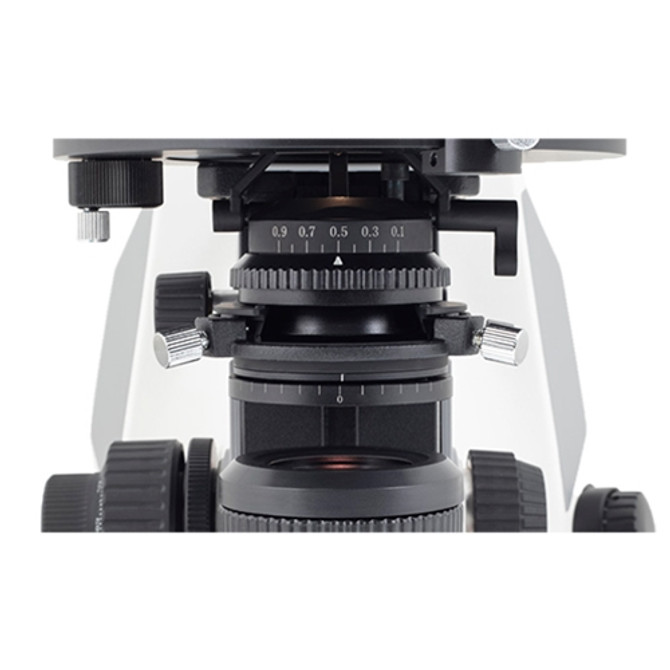

• Condenser: Includes a focusable and centerable NA 0.9 swing out achromat condenser (strain-free) and rotatable polarizer.
• Illumination: transmitted 3W LED module and 6V /30W halogen, full Koehler.
• Motic LightTracer: Digital illumination control. Digital intensity knob with coded LED nosepiece controls the illuminator to offer information on the current light intensity of each objective. Once calibrated, the user does not need to adjust the illumination intensity when changing magnification.
• Compensators: Polarizing microscope comes standard with an empty insertion plate to hold a tint plate, 1/4 wave plate or quartz wedge (all sold separately, see below).
• Included: Dust cover, power, cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference color chart, screws for metal extension support.
• Warranty: 5 Year warranty. Electrical warranty is 90 days.
• View the Motic Panthera TEC POL Brochure
