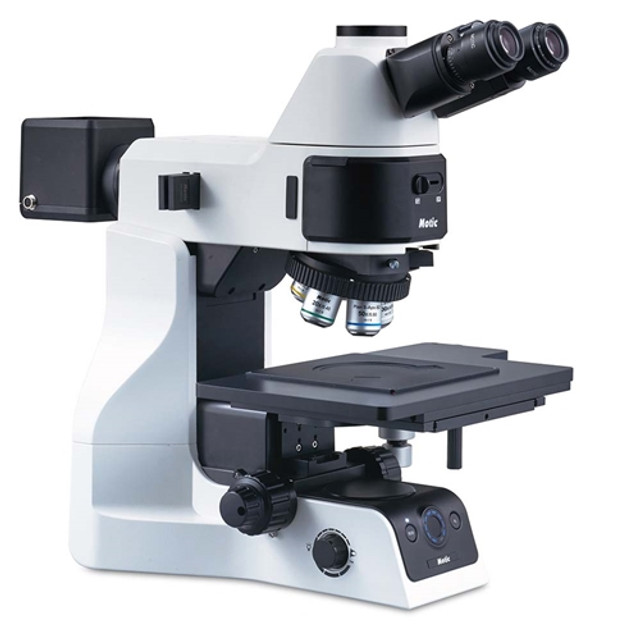

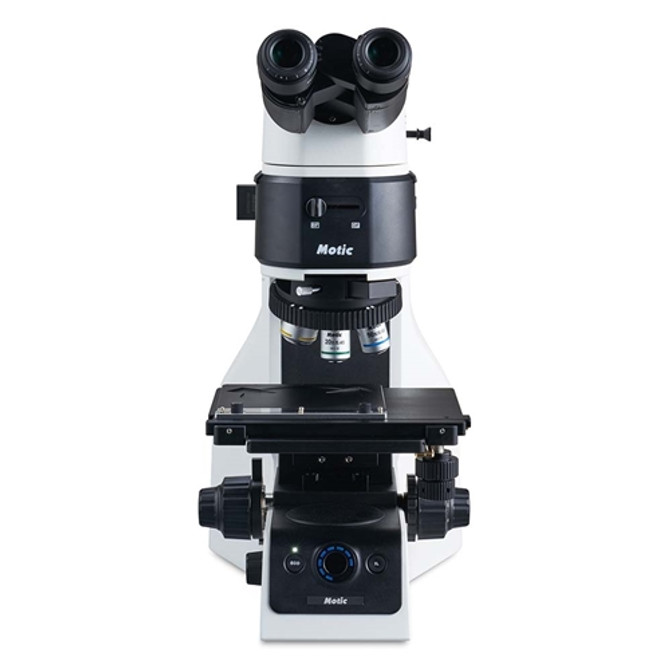

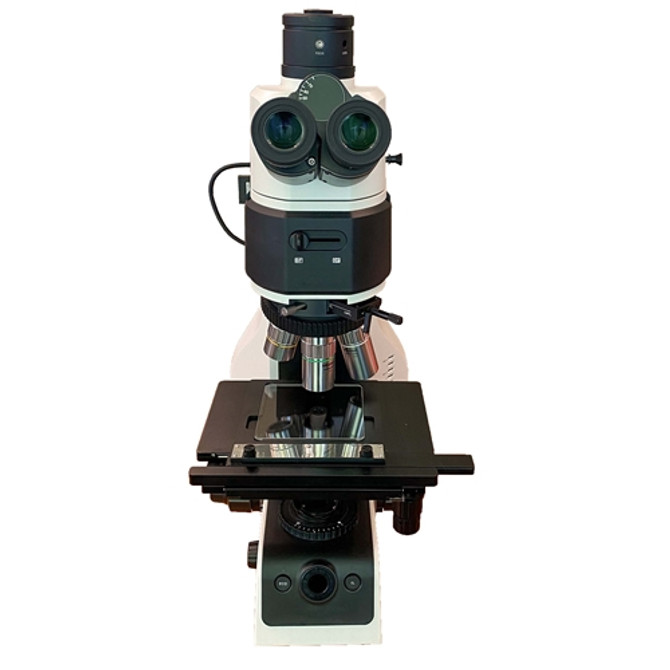

Motic PA53MET Metallurgical Microscope with LWD Objectives

The Motic PA53 MET microscope is designed for metallurgical applications. This microscope has Mitutoyo M Plan Apo Long working distance (LWD) Objective lenses.  NOTE: Please contact us for regional availability.

• Objective Lenses:
  Scalable Infinity-Corrected Optical System (CCIS) brightfield metallurgical objectives:
  • Mitutoyo Plan M-APO 5x/0.14, WD = 34.0mm
  • Mitutoyo Plan M-APO 10x/0.28, WD = 34.0mm
  • Mitutoyo Plan M-APO 20x/0.42, WD = 20.0mm
  • Mitutoyo Plan M-APO 50x/0.55, WD = 13.0mm
  • Spacers (PA53MS50M), quantity 4, are included.
• Viewing Head: Erect type (F.N 25) Trinocular head 20º inclined, Light path to eyepieces/camera either 100:0 or 0:100
• Eyepieces: 10x eyepieces/ 25mm, accepts 25mm diameter reticle. Adjustable diopters.
• Total Magnification: 50x, 100x, 200x, 500x.
• Specimen Stage:  4x4 inch stage, with 210 (W)x 170(D) mm specimen size, stroke 104(X) x 102(Y) mm, with a metal plate.
• Focusing: Manual coarse and fine focusing. Coarse: 17.7 mm/ revolution, Fine: 0.1 mm/revolution (1 µm scale)
• Illumination: Reflected: Koehler illumination system Brightfield and simple polarized. Light source: 12V, 100W Halogen bulb.
• Stand Features: Five-position nosepiece with DIC slot.
• Size & Weight: 9.7" W x 22.5" H x 20.2" D, 42 lb.
• Warranty: 5 years on microscope parts. 1 year warranty on electrical, electronic components, and digital cameras.

View the Motic PA53MET Product Brochure.
