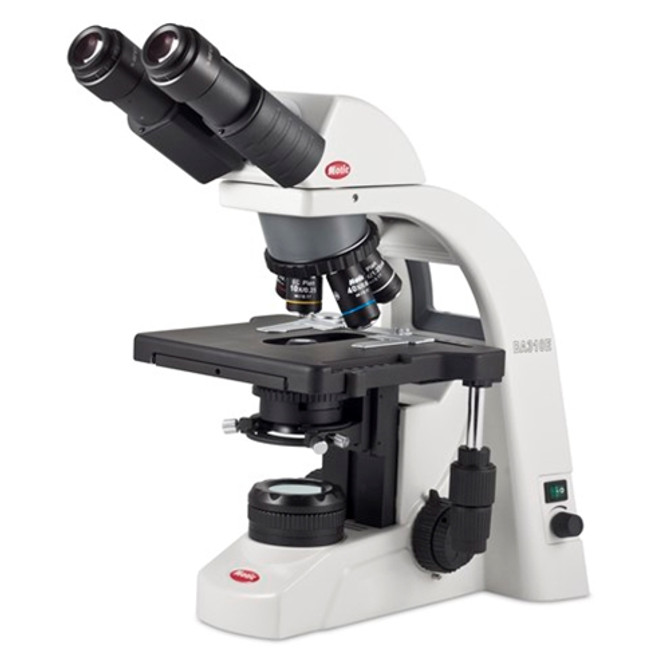

Motic BA310 Elite Laboratory Microscope
The Motic BA310E Elite Biological microscope is designed for clinical, university or institutional uses. Includes color corrected infinity optical system. The M…
SKU:
$2,084.00 - $2,326.00
The Motic BA310E Elite Biological microscope is designed for clinical, university or institutional uses. Includes color corrected infinity optical system. The Motic BA310E microscope includes the following:
- Objective Lenses: Inward facing quintuple objective turret revolving nosepiece holds CCIS EC Plan Achromat objectives 4x, 10x, 40xs, 100xs oil immersion.
- Viewing Head: Binocular or Trinocular. Trinocular version has a port that features a professional light distribution slider of 100% binocular or 100% photo tube, making it ideal for photo microscopy.
- Eyepieces: Siedentopf high eyepoint widefield 10x eyepieces, 20mm FOV. Accepts 25mm diameter reticle. 30° inclined binocular tubes with interpupillary distance adjustments from 48 mm to 75 mm. (WF15x eyepieces are also available). Independent diopter adjustments are on each eyepiece, rather than on the eyepiece tube.
- Total Magnification: 40x, 100x, 400x, 1000x.
- Specimen Stage: Has rackless, rectangular mechanical stage, 180mm x 170mm with a travel range of 80mm x 55mm. Low positioned coaxial control knobs make it easy to control stage movement. The stage is protected with a special hard coating to protect against abrasion and fungus growth.
- Stand: T-shaped base and pyramid-designed frame provide superb stability and mechanical design to achieve ergonomic and fatigue-free operation as well as saving vital desk space in modern laboratories.
- Focusing: Fine and coarse coaxial focusing. The combination of a triangular steel rail with an adjustable torque control knob provides for easy control of the coarse focusing tension and total vertical movement of 20mm at 2 µm.
- Condenser: Has focusable and centerable Abbe N.A. 0.90/ 1.25 condenser with iris diaphragm and a slot for contrast sliders. The condenser is attached to the microscope using a dovetail mount and can be adjusted through a rack and pinion mechanism ensuring a durable and smooth range of adjustments.
- Illumination: 3W LED (6000K) illumination the field iris diaphragm provides an exact Koehler illumination. Includes built-in intensity control. 100~240V.
- Anti-Fungus Treatment: All critical parts of the microscope such as the eyepieces, objectives and observation tube are anti-fungus treated to ensure image clarity and optical performance.
- Size: 400mm L x 220mm W x 400mm H (15.7" x 7.9" x 15.7")
- Weight: 8.6 kg ( 18.9 lbs)
- Included: Dust cover, 5 mL immersion oil, blue filter, power cord
- Warranty: Five year warranty excluding electrical parts.
