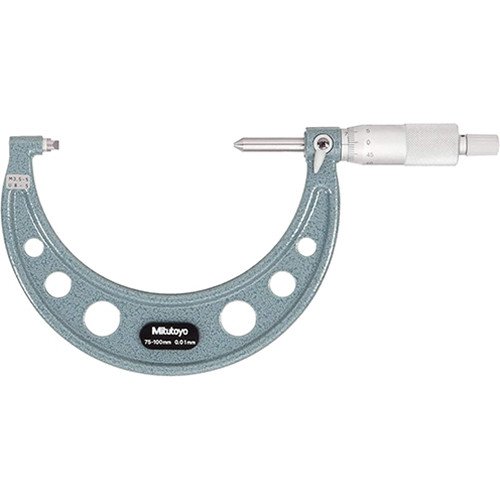

Mitutoyo Vernier Screw Thread Micrometer 75-100mm Includes V-Anvil

This Mitutoyo vernier screw thread micrometer includes a 60 degree V-anvil and conical spindle for measuring pitch diameters of metric or unified screw threads. The screw thread micrometer has a ratchet stop that provides constant force. Includes standard bar. Select the screw thread size being measured.

• Range 75-100mm
• Mass 330g
• Screw size:

  • 0.6-0.9mm/44-28TPI
  • 1-1.75mm/24-14TPI
  • 2-3mm/ 13-9TPI
  • 3.5-5mm/8-5TPI
  • 5.5-7mm/ 4.5-3.5TPI
• Accuracy +/-(2+R/75)µm,R=max. range (mm)
• Graduation 0.01mm
• Anvil V-Anvil
• Spindle feed error 3µm
• Data Output No
• Case includes fitted case

Mitutoyo Part # 125-116, 125-117, 125-118, 125-119, 125-120
