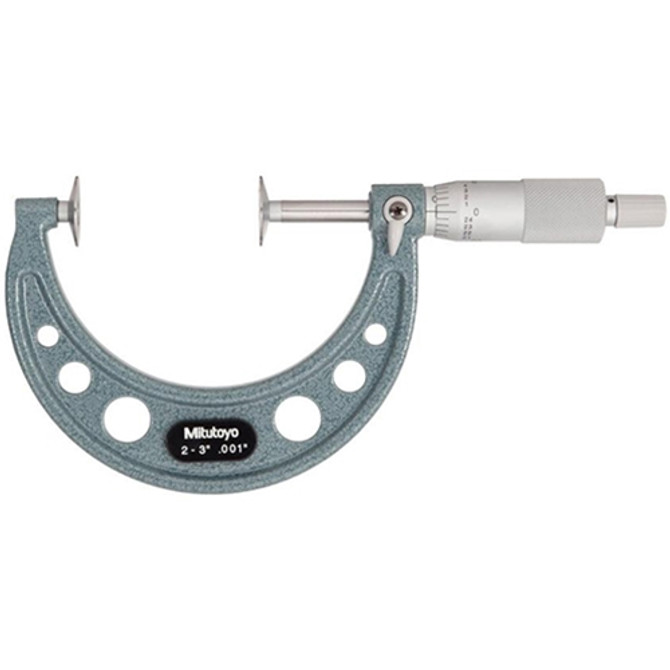

Mitutoyo Vernier Disk Micrometer 2-3"
This Mitutoyo Vernier Disk micrometer has a rotating spindle that is designed to easily measure root tangent length of spur gears and helical gears. The ratchet…
SKU:
123-127
Measurement:
Inches
$397.00
This Mitutoyo Vernier Disk micrometer has a rotating spindle that is designed to easily measure root tangent length of spur gears and helical gears. The ratchet stop provides constant force. Includes standard bar.
- Range 2-3"
- Accuracy ±0.0003"
- Graduation 0.001"
- Mass 300g
- Edge Thickness 0.028" to enter narrow recesses.
- Diameter of Measuring Disk 0.787"
- Data Output No
- Flatness 0.00004"
- Parallelism 0.00024"
- Case Includes fitted case.
Mitutoyo Part # = 123-127
NOTE: This item is not returnable.
