No reviews yet Write a Review
This vernier depth micrometer features 0.157" measuring rod with measuring rod clamp. It has a ratchet stop for constant force Range 0-1" Accuracy ±…

Read more
SKU:
$169.00 - $181.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

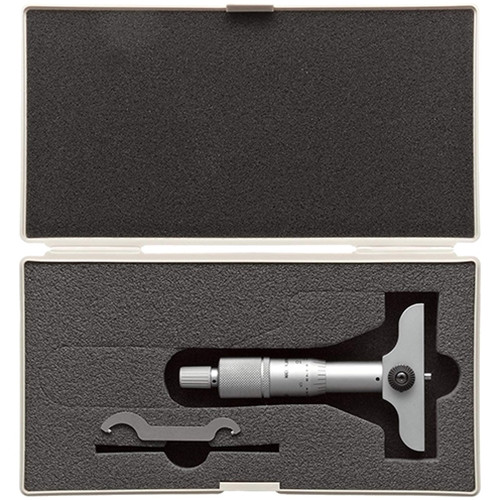

This vernier depth micrometer features 0.157" measuring rod with measuring rod clamp. It has a ratchet stop for constant force

  • Range 0-1"
  • Accuracy ± 3µm for micrometer head feed
  • Graduation 0.001"
  • Base size 2.5" x 0.63" or 4" x 0.63", select when ordering
  • Flatness of reference face 1.3µm for 63.5mm base, 2µm for 101.6mm base
  • Flatness of measuring face rod 0.3µm
  • Parallelism (4+L/50)µm L=Max measuring length (mm)
  • Rod diameter 0.157"
  • Case includes fitted plastic case.

Mitutoyo Part # = 128-105, 128-106
NOTE: This item is not returnable.
