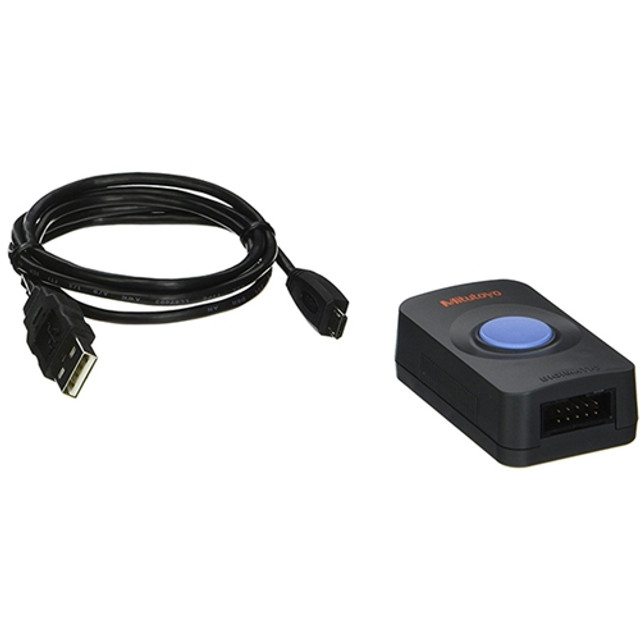

Mitutoyo USB Input Tool Direct USB-ITN

The Mitutoyo USB-ITN USB input tool direct allows connection of your Mitutoyo digimatic digital tool directly into the USB port on your computer. Simply select the correct cable end (A-G see chart below) that matches your tool. No special software required.

• Measurement data can be loaded directly into an Excel spreadsheet by connecting the instrument and USB-ITN tool to the computer.
• Cable length = 2m
• NOTE: some high-precision Digimatic gages are capable of displaying the measurement result to more than 6 digits. However, according to the Digimatic output specification, the result may be output in 6 digits only. Digimatic gages whose display may exceed 6 digits include: laser scan micrometers, litematic, linear gage counter (EH), high-accuracy digimatic micrometer.

This item is not returnable.

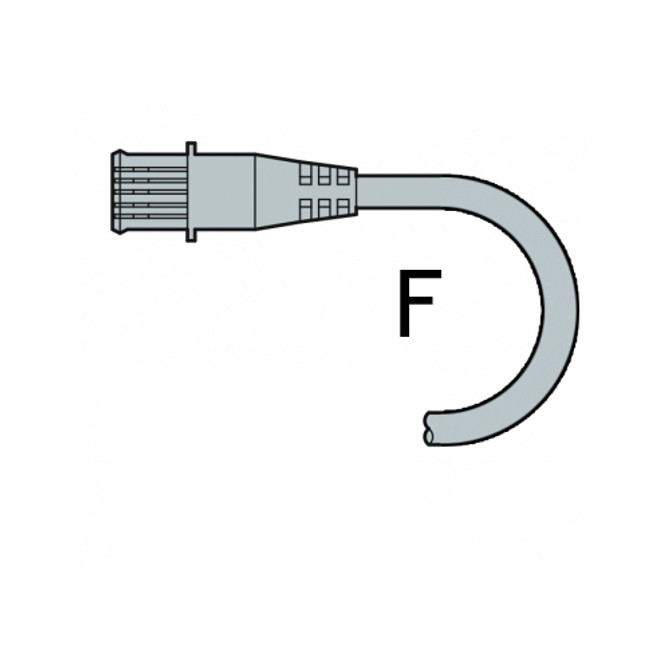

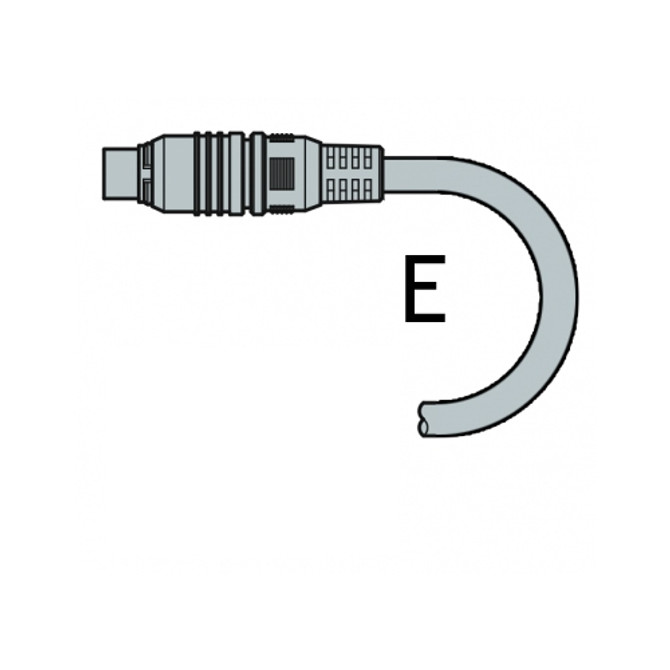

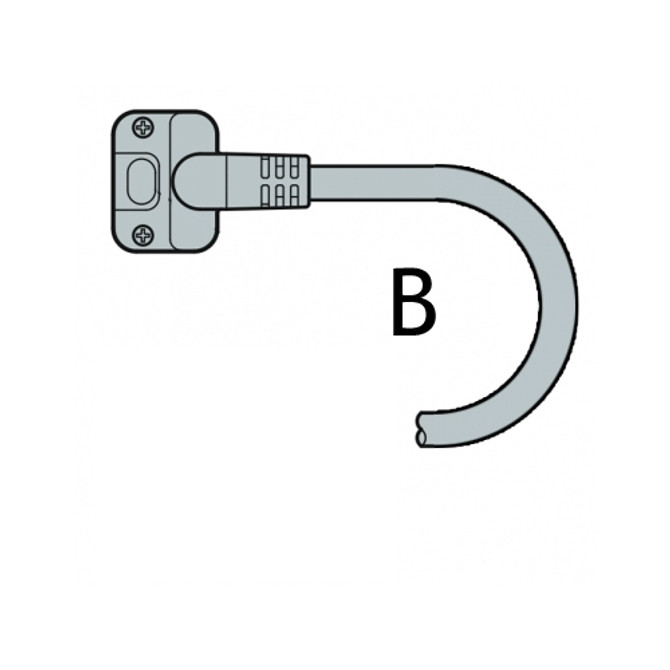

ISB-ITN- :	A	B	C	D	E	F	G
Mitutoyo Part #:	06AFM380A	06AFM380B	06AFM380C	06AFM380D	06AFM380E	06AFM380F	06AFM380G
Socket Shape on Measuring Tool:
Measuring Instruments:	Digimatic Caliper & Super Caliper 500 Series: CD67-S_PM CD-PMX/PM/GM 550/551 Series: CDC-P_PMX CDN-P_PMX Digimatic Carbon Fiber Caliper 552 Series: CFC-G/GL/GC/GU Digimatic Depth Gage 571 Series: VDS-PMX Digimatic Scale Unit 572 Series: SD-G Digimatic Exclusive Caliper 573 Series: NTD-PMX/PM	Digimatic Micrometer, QuantuMike 293 Series: MDC-MJ/MJB/MJT MDE-MJ Tubular Inside Micrometer 337 Series: IMZ-MJ 339 Series: IMJ-MJ Digimatic Micrometer Head 350 Series: MHN-MB/MJB/ MJNB Digimatic Exclusive Micrometer End mark is MJ/MJB/M/MB/ PM/PMB Digimatic Holtest 468 Series: HTD-R	Digimatic Micrometer Head 164 Series: MHD-MB Digimatic Caliper 500 Series: CD-CX/C/ S_C 550/551 Series: CDC-C/CX, CDN-C/CX Digimatic Depth Gage 571 Series: VDS-DCX/DC Digimatic Scale Unit 572 Series: SD-D/SDV-D Digimatic Exclusive Caliper 573 Series: End of mark is CX/C	Surface Roughness Tester 178 Series: SJ-201/210/ 301/400/500 Coating Thickness Gage 179 Series: DGE-745/755 Linear Height 518 Series: QMH-S Reference Gage 515 Series: HMD-C Digimatic Indicator 543 Series: ID-H Laser Scan Micrometer 544 Series: LSM-9506/ 6100/6200/ 6900 µ Checker Digital µ Checker (using foot switch)	Digimatic Micrometer 121 Series: BD 164 Series: MHD-M 227 Series: CLM 293 Series: MDQ-M MDC-M Tubular Inside Micrometer 337 Series: IMZ-M 339 Series: IMJ-M Digimatic Holtest 468 Series: HTD Reference Gage 515 Series: HME-DM Borematic 568 Series: SBM-C Hardness Testing Machines 810 Series: HM-100/200 HV-100/HH-411 HR-500	Digimatic Height Gage 192/570/574 Series: HDM-A/AX HD-A/AX HDS-H_C/C HDF-N Digimatic Caliper 500/550/551 Series: CD/CDC/CDN Digimatic Bore Gage 511 Series: CG-D Digimatic Indicator 543 Series: ID-C_X/_RB/ _GB Digimatic Depth Gage/ Thickness Gage 547 Series Digimatic Model ID-CX Digimatic Carbon Fiber Caliper 552 Series: CFC-P/-L/-C/ -U Digimatic Scale Unit 572 Series: SD-E, SDV-E SD-F, SDV-F Portable Hardness Testing 811 Series: HH-300	Digimatic Indicator 543 Series: ID-N ID-B
				Measuring Instrument models with NO data switch:
				Digimatic Indicator 543 Series: ID-F Linear Gage/ Counter 542 Series: EF-PRH/ZR EH-P/Z/S/D EB-P/Z/D EC-D Litematic 318 Series: VL-A/AS/AH		Digimatic Indicator 543 Series: ID-C/S/C_A Digimatic Depth Gage/ Thickness Gage 547 Series: Digimatic Model ID-C 575 Series: ID-U
